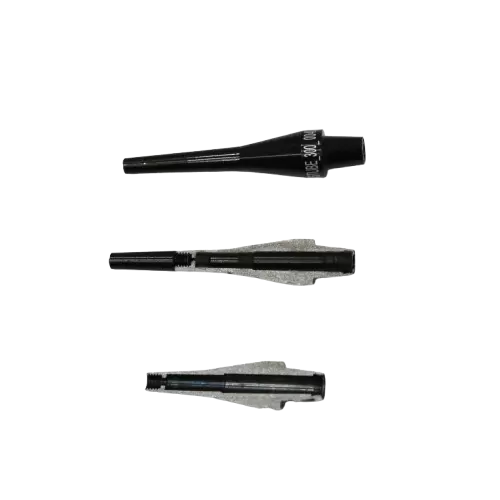

Home / Custom / Optical Lens / Medical Endoscope Objective / Otoscope
ECOPTIK is capable of handling the entire process from overall design, accessory processing to accessory assembly and testing. Our otoscope products have also been widely recognized in the European market. At present, the ECOPTIK optoelectronics team has been focusing on the replacement and upgrading of otoscopes, striving to achieve market synchronization.
Optical glass such as K9, fused silica, sapphire, MgF2, silicon (Si), ZnSe, ZnS, etc. These materials possess high transmittance, low absorption, low scattering, uniform refractive index, and specific dispersion characteristics.
Precisely hemispherical. The machining precision of the center and radius of curvature of the sphere is extremely high.
The surface is precision polished to an optical grade of 10-5 to ensure image quality and reduce scattering and aberrations.
An AR coating is typically applied to the concave surface to maximize the transmittance of specific wavelengths of light (e.g. visible light) and reduce reflection loss.
Substrate | CDGM,Schott,AL6061 |
|---|---|
Optical partial accuracy | Surface accuracy: λ/10 |
Centration： <1 arc min | |
Surface quality: 20/10 scratch/ dig | |
Coating: AR coating | |
Mechanical partial accuracy | Dimension tolerance： +/-2um |
Good coaxiality | |
Part of assembly | Threaded assembly, fixed focus |
Finished product test section | According to the requirement of the client |
