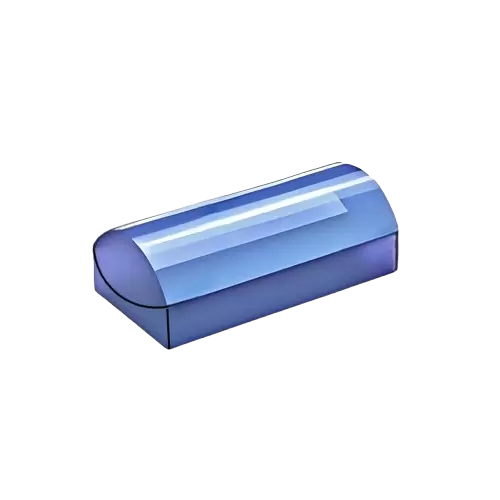

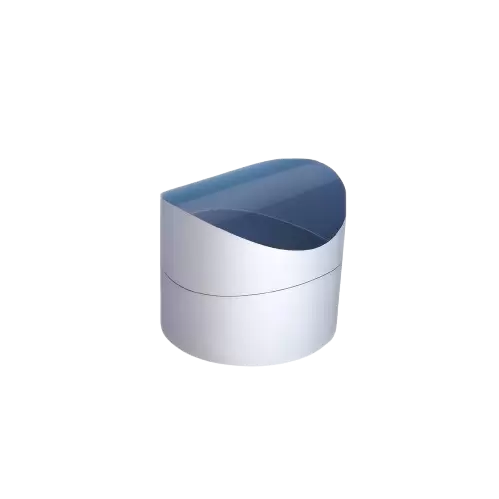

An achromatic cylindrical lens can minimize chromatic aberration, so it can be used to focus a single direction of a multi-color light beam. Unlike a spherical lens that produces a point-focusing spot, an achromatic cylindrical lens can produce a linear focusing spot. Our cylindrical achromatic doublets are pre-installed in a Ø1" housing for ease of use.
Optical glass such as K9, fused silica, sapphire, MgF2, silicon (Si), ZnSe, ZnS, etc. These materials possess high transmittance, low absorption, low scattering, uniform refractive index, and specific dispersion characteristics.
Precisely hemispherical. The machining precision of the center and radius of curvature of the sphere is extremely high.
The surface is precision polished to an optical grade of 10-5 to ensure image quality and reduce scattering and aberrations.
An AR coating is typically applied to the concave surface to maximize the transmittance of specific wavelengths of light (e.g. visible light) and reduce reflection loss.
| Commercial | High precision | |
|---|---|---|
| Material | Optical glasses, fused silica, silica, etc. | |
| Diameter | 0.5mm ~ 150mm | |
| Diameter tolerance | ±0.1mm | ±0.02 |
| Focal length | -50mm ~ 2000mm | |
| Focal length tolerance | ±2% (<10mm) | |
| ±0.5% <10mm – 1000mm) | ||
| ±1% (>1000%) | ||
| Centraticom | <3 arc min | <10 arc sec |
| Clear aperture | >85% ~92% of diameter | |
| Surface quality ( Scratch / Dig) | MIL 60/40 | MIL 10/5 |
| Surface accuracy | λ/4@632.8nm | λ/10632.8nm |
| Bevel | 0.05mm~0.2mm x 45° | |
| Coating | Up on customer's requirement. | |
