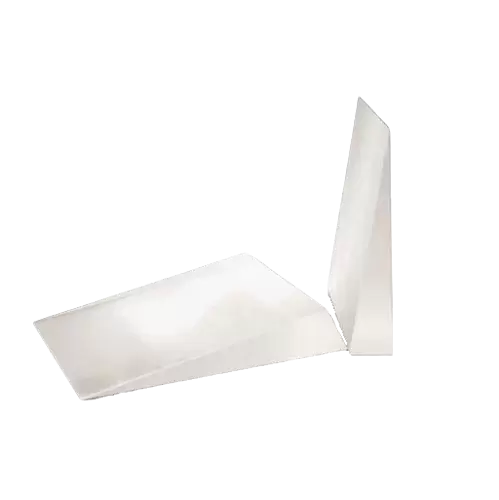

An anamorphic prism pair is a pair of prisms which is usually used for reshaping the profile of a laser beam. For example, the elliptical beam from a laser diode can be transformed into a beam with circular cross-section, as is needed for many applications, by using an optical prism pair as a beam expander for only one direction (e.g., the horizontal one). Of course, one can also just modify the ellipticity, or convert a circular beam into an elliptical one.
Optical glass such as K9, fused silica, sapphire, MgF2, silicon (Si), ZnSe, ZnS, etc. These materials possess high transmittance, low absorption, low scattering, uniform refractive index, and specific dispersion characteristics.
Precisely hemispherical. The machining precision of the center and radius of curvature of the sphere is extremely high.
The surface is precision polished to an optical grade of 10-5 to ensure image quality and reduce scattering and aberrations.
An AR coating is typically applied to the concave surface to maximize the transmittance of specific wavelengths of light (e.g. visible light) and reduce reflection loss.
| Material | SF11 |
|---|---|
| Dimension Tolerances | +0.0, -0.2 mm |
| Surface Flatness | <λ/8 @ 632.8 nm |
| Surface Quality | 60-40 scratch & dig |
| Theta Angle | 29°27' ± 3" |
| Clear Aperture | > 85% in central circular dimension |
| Coating | MgF2 single layer on perpendicular surface |
