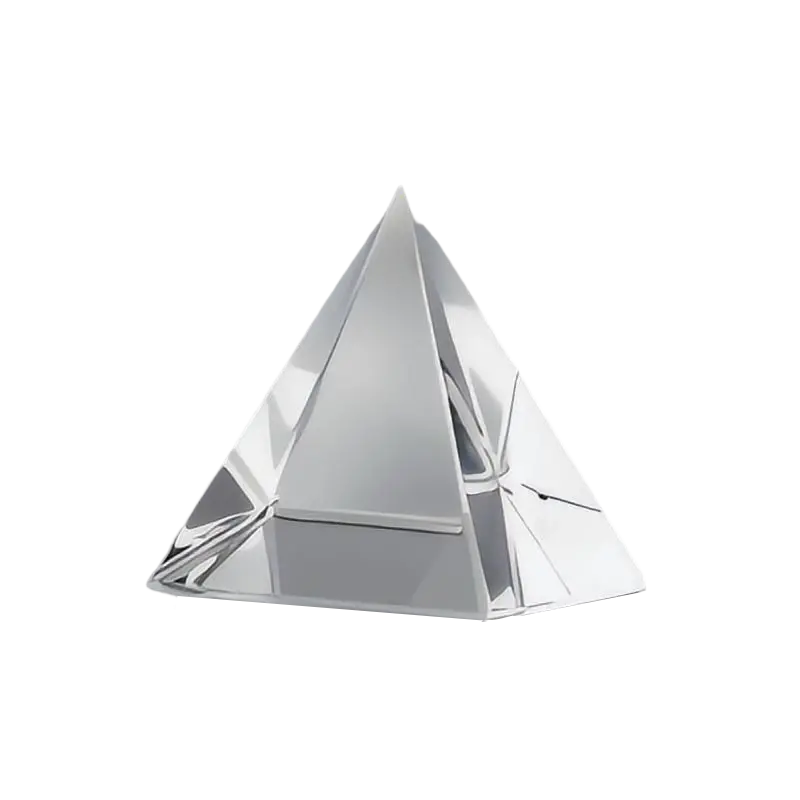

Pyramid prism is a prism with multiple bevels (usually 3 or 4), and its overall shape resembles a pyramid. It can split an incident beam of light into multiple symmetrical outgoing beams, or conversely, combine multiple beams into a single beam. It is widely used in precision measurement, optical sensing, and structured light generation.
| Items | Parameters |
|---|---|
| Substrate Material | N-BK7, Fused Silica, etc. |
| Angle Tolerance | ±3 arc minutes or higher |
| Surface Accuracy | λ/4 @ 632.8nm or better |
| Surface Quality | 60-40 |
| Clear Aperture | >80% or >85% |
| Coating | According to customer requirements. |
