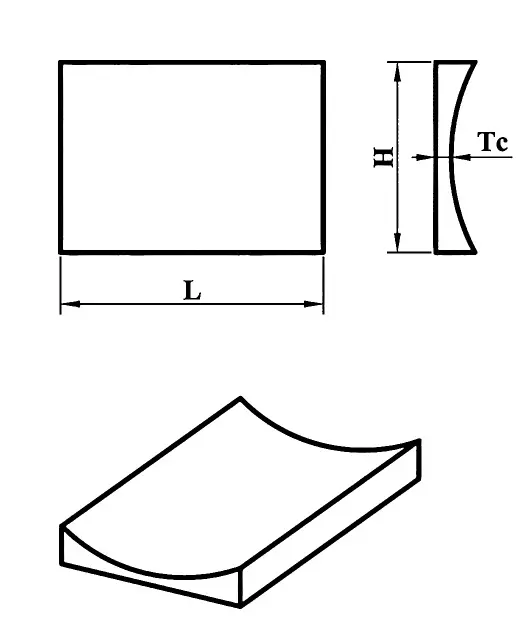

Plano-concave cylindrical lens is used to expand light in on-axis. A negative cylindrical lens is able to diverge collimated input light away from a line. Plano-concave cylindrical lenses are used for one-dimensional compression of images, anamorphic beam shaping, and laser line generation.
| Items | Parameters |
|---|---|
| Material | N-BK7/H-K9L , fused silica (UVFS), CaF₂, ZnSe, etc |
| Diameter | 2mm ~ 300mm |
| Diameter tolerance | +0.0/-0.1mm (common) |
| Focal length | -3.9mm to -700mm |
| Focal length tolerance | ±1% (high precision) to ±3% |
| Surface quality | 40-20, 60-40 |
| Surface accuracy | λ/2 , λ/4 @ 632.8nm |
