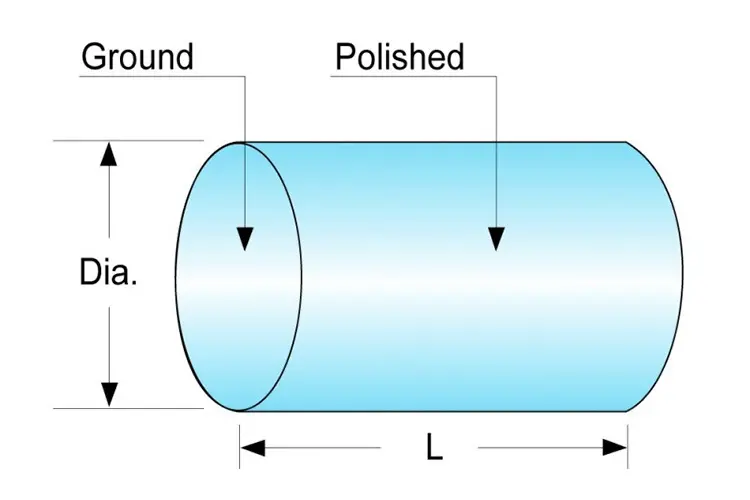

Rod Lenses are polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Collimated light passing through the diameter of the rod lens will be focused into a line. Optical glass and UV Fused Silica substrates are available for a variety of UV, Visible, and NIR applications.
| Items | Parameters |
|---|---|
| Material | Fused Silica IR Trasmissive grade with OH< 10 PPM |
| Diameter | 4.75mm+/-0.1mm |
| Length | 12mm+/-0.2mm |
| Clear Aperture | 4.75mm(14.922mm Naminal Circumference)*10mm Length |
| Surface Quality | 20/10 Scratch/Dig |
| Surface Figure | 1 wavelength irregularity |
| Bevel Edge | 45Deg +/-15 deg Max Bevel=0.5mm |
| Coating | MgF2 Hard Coating Centered at 780nm |
| AOI | 22Deg |
