In the world of precision optics, thin-film coatings are what transform a simple piece of glass into a functional optical component—whether it's an anti-reflection coating that maximizes light transmission, a dielectric mirror that reflects specific wavelengths, or a filter that precisely separates spectral bands . The performance of these coatings directly determines whether an optical system succeeds or fails. But how do manufacturers verify coating quality without risking damage to expensive finished components? The answer lies in a small but indispensable tool: the “witness sample”.

What are Witness Samples?

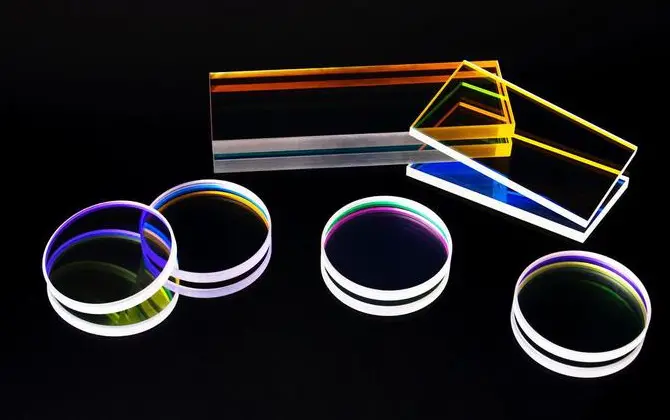

A witness sample—also referred to as a witness piece, test piece, or陪镀片 in Chinese manufacturing contexts—is a small substrate that accompanies production optics through the entire coating process . These samples are placed alongside the actual components inside the coating chamber, exposed to the exact same deposition conditions, and later removed for testing and measurement.

The fundamental principle is simple: by testing the witness sample, you gain reliable insight into the coating quality on your production parts without ever touching or risking those valuable components .

The Critical Roles of Witness Samples

1. Non-Destructive Quality Monitoring

The most immediate benefit of witness samples is that they enable comprehensive testing without damaging finished products. High-value optical elements—such as large lenses, prisms, or specialized substrates—cannot be easily replaced if scratched or contaminated during measurement . Witness samples provide a sacrificial test medium that accurately represents the coating batch.

2. Spectral Performance Verification

Using spectrophotometers, manufacturers can measure critical parameters on witness samples including:

- Transmission and reflection curves across target wavelength ranges

- Center wavelength accuracy for bandpass filters

- Cut-on/cut-off steepness for edge filters

- Coating uniformity across the chamber

If a witness sample shows a transmission peak shifted by even 5 nanometers from the design specification, it indicates that production parts will exhibit the same deviation—allowing for immediate process adjustment .

3. Environmental Durability Validation

Modern optical coatings must survive harsh conditions. Witness samples are routinely subjected to rigorous environmental testing per military and industry standards, including:

- Adhesion testing (tape pull tests per MIL-PRF-13830B)

- Humidity exposure (typically 49°C at 95% relative humidity)

- Temperature cycling and thermal shock

- Salt spray/fog exposure(ASTM B-117, ISO 9227)

- Abrasion resistance(moderate and severe abrasion tests)

Because witness samples are expendable, they can be subjected to destructive testing that would be impossible on production optics.

4. Long-Term Stability Assessment

Witness samples can be archived and retested months or years after production to evaluate coating stability over time . This is particularly valuable for mission-critical applications in aerospace, defense, or medical devices where long-term reliability is non-negotiable.

5. Failure Analysis and Process Optimization

When coating defects occur—whether delamination, spectral shift, or cosmetic blemishes—witness samples provide invaluable forensic evidence. Scanning electron microscopy (SEM) or ellipsometry analysis of witness samples can reveal:

- Interface contamination between coating layers

- Stress-induced micro-cracking

- Thickness errors in individual layers

- Particulate inclusions or pinholes

This diagnostic capability enables targeted process improvements rather than guesswork.

How to Properly Specify Witness Samples

To ensure witness samples serve their intended purpose, they must be specified correctly on your purchase orders and technical drawings.

Without witness samples, precision coating would be a leap of faith. These unassuming pieces of glass or substrate material serve as the eyes and ears of the coating engineer—providing the data needed to confirm quality, identify problems, and continuously improve processes .

For buyers and specifiers of coated optics, including clear witness sample requirements in your procurement documentation is not optional; it is essential quality assurance. A well-specified witness sample program protects your investment, ensures compliance with specifications, and provides the traceability that mission-critical applications demand.

When you receive coated optics, remember: the witness sample that came with your batch may be small, but it carries the weight of your quality assurance program.

For expert witness sample solutions tailored to your specific coating applications, consult with experienced optical manufacturers who can provide materials matching your production needs and support comprehensive testing protocols.
