Name: Protected Aluminum Mirror
Rating: 4.5 (100 reviews)

Key Features

Robust and Durable

The protective film significantly enhances the mechanical strength of the aluminum film, enabling it to withstand gentle cleaning and greatly extending its service life.
Broad-Spectrum High Reflectivity

Inheriting the high reflectivity of aluminum film across the visible to far-infrared bands, and with a flat reflectivity curve, it is insensitive to incident angle and polarization state.
Low Cost

It is one of the most widely used and economical metal reflectors, suitable for the vast majority of general-purpose optical systems.
Limitations

Not suitable for high-power lasers. The nature of the metal film determines its low laser damage threshold, making it unable to withstand high-energy/high-power laser irradiation.

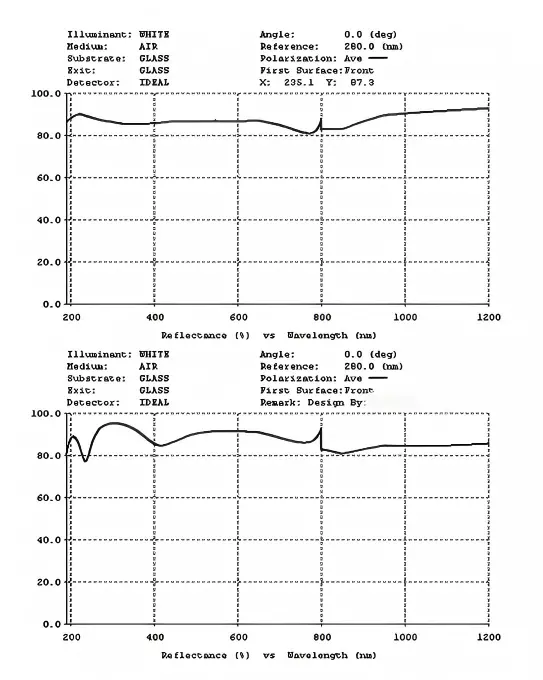

Spectral Curve

Specification of Protected Aluminum Mirror

Typical Application Areas

Optical System Components

Used to establish optical paths, deflect beams, and construct basic optical systems (such as laser collimation and interferometry). It is the most commonly used reflector in laboratories, suitable for most routine experiments that do not require maximum efficiency.
Imaging and Optical Instruments

Used for light deflection in instruments such as microscopes, telescopes, and medical diagnostic equipment. Especially in systems requiring coverage from visible light to near-infrared, its flat reflectivity curve ensures accurate color reproduction and balanced energy distribution in imaging.
