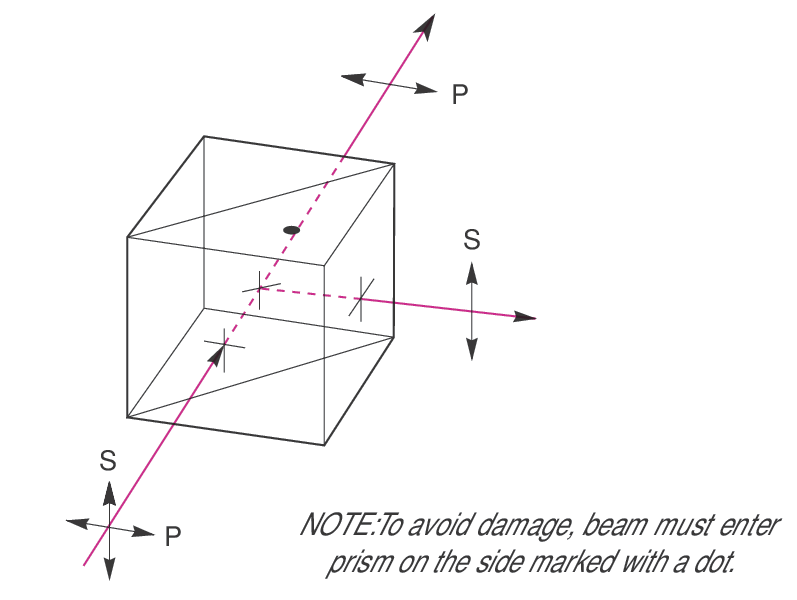

Cube beamsplitter is not a simple prism, it is formed by cementing together the beveled faces of two right-angled prisms. One of the beveled faces is coated with a beam-splitting coating, and all light-transmitting surfaces are typically coated with AR coating to minimize reflection loss. Compared to traditional flat beamsplitters, it does not produce ghosting or beam shift, the transmitted and reflected light have equal optical path lengths, and it is robust and stable in performance.
| Items | Parameters |
|---|---|
| Material | N-BK7, UV fused silica etc |
| Dimension Tolerance | ±0.1mm |
| Surface Flatness | λ/4 @ 632.8nm |
| Surface Quality | 60/40, 40/20 |
| Angle Tolerance | <3arc min~ 30 arc sec. |
| Principal Transmittance | Tpave > 96%, Ts,1% (Narrowband) |
| Tpave > 95%, Ts,1% (Broadband) | |
| Principal Reflectance | Rs>99%, Rp<5% |
| Coating | Hypotenuse face: Polarization beamsplitter coating; All input and output face: AR Coating |
| Type No. | Size(mm) |
|---|---|
| ECO-CBP-5 | 5×5×5 |
| ECO-CBP-10 | 10×10×10 |
| ECO-CBP-12.7 | 12.7×12.7×12.7 |
| ECO-CBP-15 | 15×15×15 |
| ECO-CBP-20 | 20×20×20 |
| ECO-CBP-25.4 | 25.4×25.4×25.4 |
