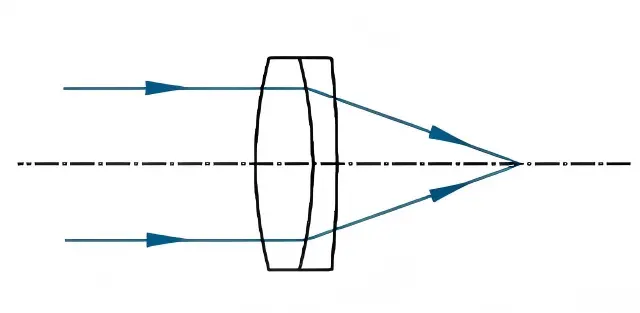

Achromatic Cemented Lens is used to minimize or eliminate chromatic aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Cemented Lenses are ideal for a range of applications, including fluorescence microscopy, image relay, inspection, or spectroscopy. An Achromatic Cemented Lens, which is often designed by either cementing two elements together or mounting the two elements in a housing, creates smaller spot sizes than comparable singlet lenses.
| Items | Parameters |
|---|---|
| Material | Optical Flint glass & Crown glass |
| Diameter | 6mm~200mm |
| Diameter Tolerance | ±0.05mm(≤50mm) |
| ±0.1mm(＞50mm) | |
| Focal Length | 50mm~2000mm |
| Focal Length Tolerance | ±0.2%（＜10mm） |
| ±0.5%（＜10mm-1000mm） | |
| ±1%（＞1000mm） | |
| Center Thickness | 2mm~50mm |
| Surface Quality | 60/40， 40/20， 20/10 |
| Surface Accuracy | λ/2~λ/10@632.8nm，532nm |
| Clear Aperture | >85% dig diameter |
| Center Deviation | <3arc min~ 30arc sec |
| Coating | According to customer requirements. |
