Plano Convex Lens

Plano-convex lens consists of a flat surface and a convex surface, and is a type of positive focal length lens. It is the most basic and commonly used lens in optical systems; through its simple asymmetrical design, it can effectively reduce spherical aberration in optical systems under specific conditions.

Contact Us

Inquire Now

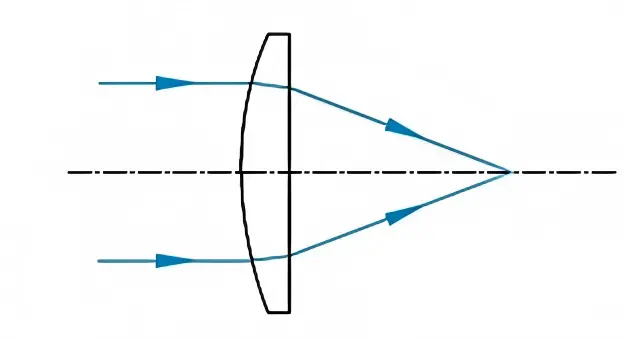

Drawing

Specification of Plano Convex Lens

Items	Parameters
Material	Optical grade glass/ Fused Silica/ Sapphire
Diameter	2mm~300mm
Diameter Tolerance	±0.05mm~±1mm
Surface Quality	80/50, 60/40, 40/20, 20/10, 10/5
Surface Accuracy	λ~λ/20
Center Deviation	3 arc min~30 arc sec.
Coating	According to customer requirements.

Typical Application Areas

Lasers and Beam Control

Laser Collimation and Focusing Systems: Fundamental to applications such as laser processing, holographic projection, and interferometry. Galilean Beam Expander: Combined with plano-concave lenses.
Imaging and Optical Systems

Imaging, Beam Expanding, or Beam Shrinking: Used for relaying images and changing the cross-sectional size of the beam (magnification or reduction), widely used in various precision optical instruments. Projection and Illumination Systems Collecting light from a light source and focusing or uniformly projecting it onto a target area, improving light energy utilization efficiency and illumination uniformity.
Classic Historical Applications

Galilean Telescope: As an objective lens, it focuses light from distant objects to form an intermediate image. A core component of the first refracting telescope used for astronomical observation.
Specialty Materials Applications

Infrared Optics and Excimer Lasers: Utilizing the ultra-wide transmittance and high laser damage threshold of calcium fluoride (CaF₂) from ultraviolet to infrared (180-8000nm), it is used in high-power laser systems and infrared imaging. Suitable for cutting-edge applications with special requirements for wavelength and power.
