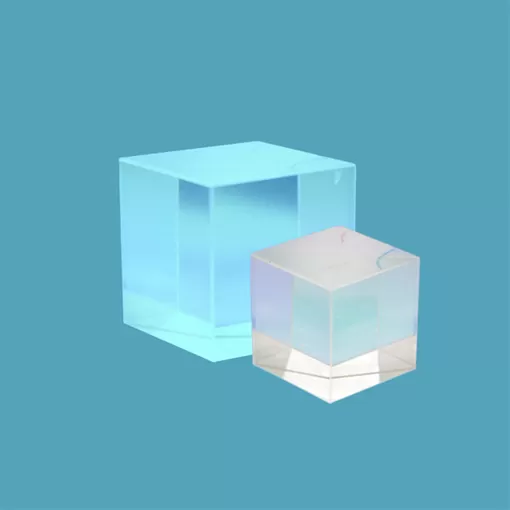

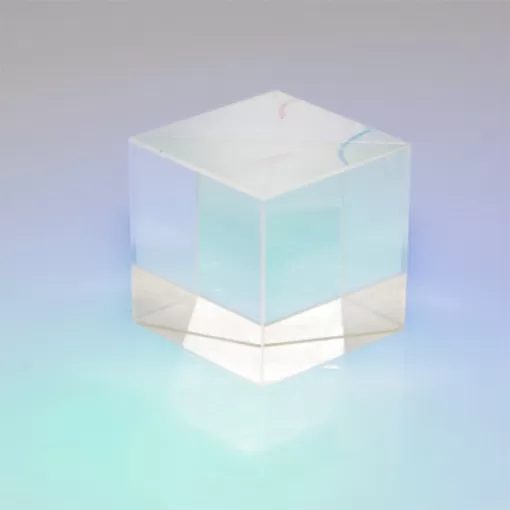

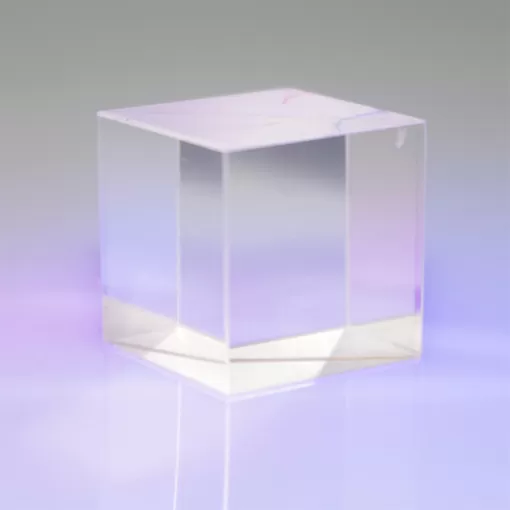

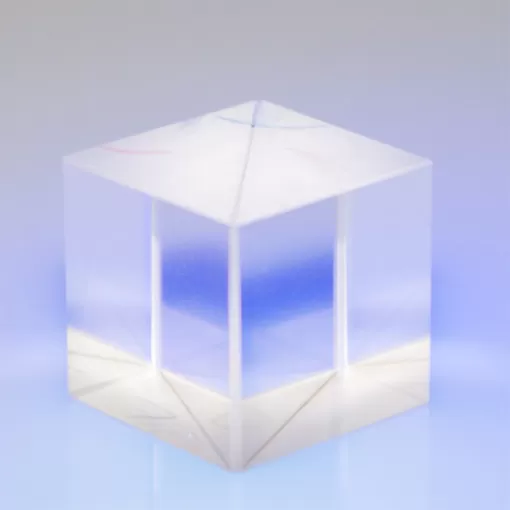

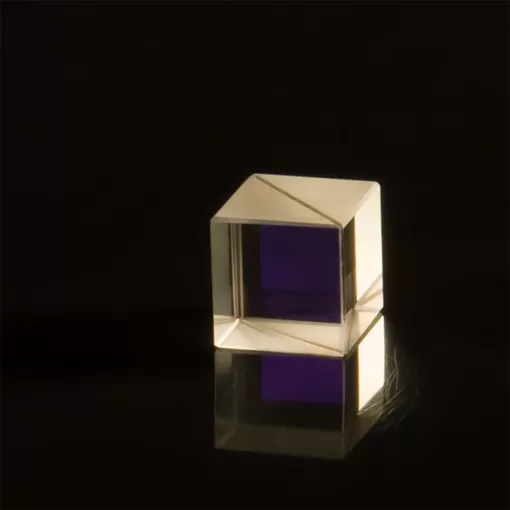

Cube Beamsplitter

Polarizing cube beamsplitters split randomly polarized beams into two otehogonal, linearly, polarized compoments, S-polarized light is reflected at a 90° while P-polarized light is transmitted. Each beamsplitter comsists of a pair of percision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of prisms.

If you want to get polarising beamsplitter price, please feel free to contact us.

Uses Cube Beamsplitter
Cube Beamsplitter
Cube Beamsplitter
Cube Beamsplitter
Cube Beamsplitter
Cube Beamsplitter
Cube Beamsplitter
Cube Beamsplitter
Cube Beamsplitter
Cube Beamsplitter
Cube Beamsplitter
Descriptions Specifications

Descriptions

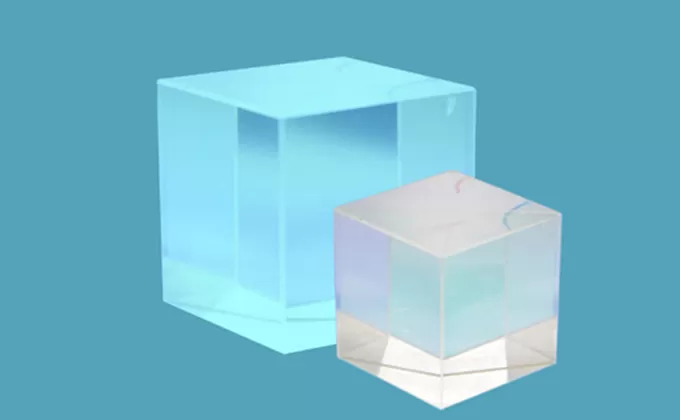

Descriptions of Cube Beamsplitter

Descriptions of Cube Beamsplitter

Polarization Cube Beamsplitter

Polarizing Cube beamsplitters split randomly polarized beams into two orthogonal, linearly, polarized components, S-polarized light is reflected at 90° while P-polarized light is transmitted. Each beamsplitter consists of a pair of precision high tolerance right-angle prisms cemented together with a dielectric coating on the hypotenuse of one of the prisms.


High Powe Cube Polarization Beamsplitter

High power polarization beamsplitter can be fabricated by Ecoptik China (also known as BRD Optical).  Same as the above, it uses precision optical contacted technology which makes it has a high laser damage threshold.


High Damage Threshold>500MV/cm2

Transmission >96% @ Central Wavelength

Extinction Ratio>1000:1

Specifications

Specifications of Cube Beamsplitter

MaterialOptical glass BK7 / ZF glass
Dimension tolerance±0.1mm
Flatnessλ/4 @ 632.8nm
Surface quality60/40, 40/20
Angle tolerance<3arc min~ 30 arc sec.
Principal transmittanceTpave > 96%,     Ts,1%   (Narrowband)
Tpave > 95%,     Ts,1%   (Broadband)
Principal reflectanceRs>99%,  Rp<5%
Coating

Hypotenuse face: Polarization beamsplitter coating;

All input and output face: AR Coating

Type No.Size(mm)
CBP-55×5×5
CBP-1010×10×10
CBP-12.712.7×12.7×12.7
CBP-1515×15×15
CBP-2020×20×20
CBP-25.425.4×25.4×25.4



Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
