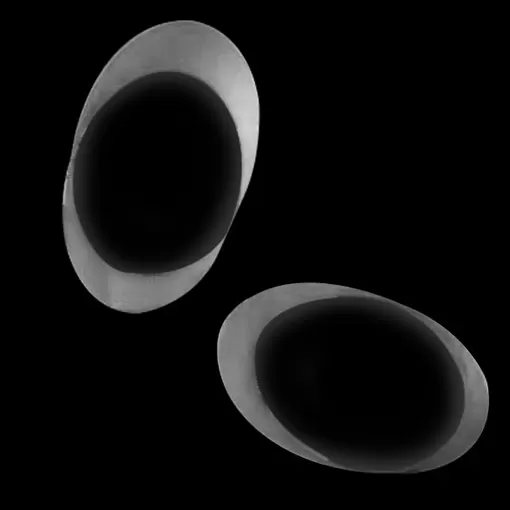

Brewster Windows

Name: Brewster Windows
Brand: ECOPTIK(CHINA)LTD

Brewster windows are uncoated substrates that can be used as polarizers in tandem, or to increase the degree of polarization of partially polarized light. When placed at Brewster's angle, the P-polarized component of the beam passes through the window without reflection loss, while the S-polarized component is partially reflected.

Uses Brewster Windows 

Descriptions Specifications

Descriptions

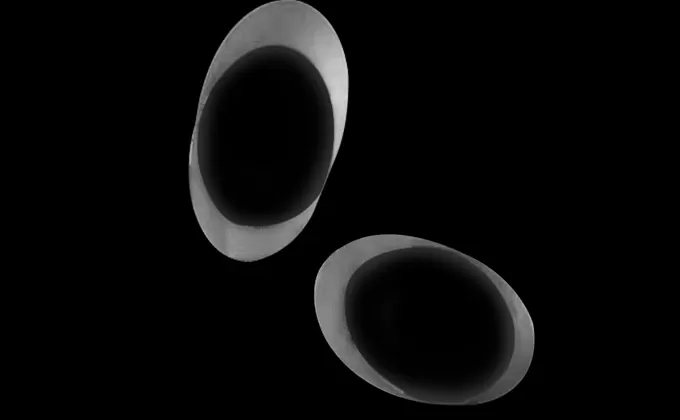

Descriptions of Brewster Windows

Brewster windows are used for larger angles of incidence to present a circular cross-section of the incident beam at Brewster's angle.

Our customers are coating the surface of the Brewster window with metal coatings (Al, Ag, Au) for enhanced reflection of aluminum, and dielectric coatings with high laser damage threshold.

Specifications

Specifications of Brewster Windows

Specification and list
Material: UV Fused silica / N-BK7
Surface quality: 10/5 – 20/10
Transmitted wavefront distortion (TWD): λ/10@632.8nm
Brewster angle: 55°32‘ – 55°57’ @633nm
Parallelism: 5 arc sec.
Minor Diameters （mm）	Thickness （mm）
6	1
6	2
8	1
8	2
10	2
12.5	2
13	2
16	2
20	2
22	2
25	2

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.

Products

Optical Windows Products

Witness Samples

Light Guide

Optical Parallels

Resources

What Is New About Ecoptik China

Get Optical Resources You Want at Ecoptik China

Blog

Exhibitions

Videos

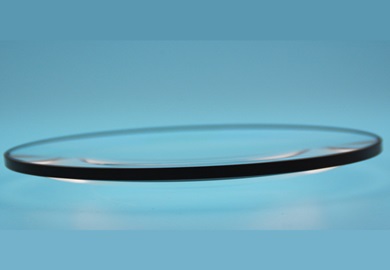

Custom Plano Convex Lens: A Key Component in Optical Design
