Dove Prism

Name: Dove Prism
Brand: ECOPTIK(CHINA)LTD

Dove prisms have an unusual and very interesting characteristic , if you look through the prism and rotate it around a longitudinal axis, the image rotates through twice the angle through which the dove prism itself rotates. For optimal peformance, use dove prisms with collimated light.

Uses Dove Prism 

Descriptions Specifications

Descriptions

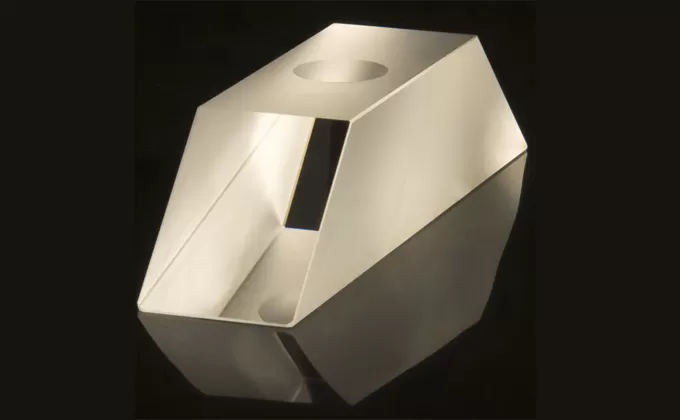

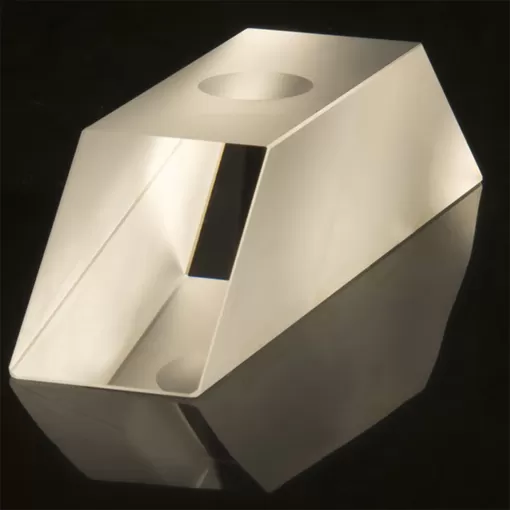

Descriptions of Dove Prism

Ecoptik Chinadove prisms have an unusual and very interesting characteristic, if you look through the prism and rotate it around a longitudinal axis, the image rotates through twice the angle through which the dove prism itself rotates.

Specifications

Specifications of Dove Prism

Material	BK7 glass / Fused Silica
Dimension tolerance	+ 0.0 / -0.2mm
Deviation	3arc min.
Flatness	λ/2@632.8nm
Clear aperture	>85%
Surface quality	60/40, 40/20
Bevel	0.1mm ×45°

Type No.	Size(A×B×C×D)
DP-0.5	0.5mm×2.1 mm×0.5 mm×0.7mm
DP-1.0	1.0 mm×4.2 mm×1.0 mm×1.4mm
DP-2.0	2.0 mm×8.4 mm×2.0 mm×2.8mm
DP-3.0	3.0 mm×12.6 mm×3.0 mm×4.2mm
DP-5.0	5.0 mm×21.4 mm×5.0 mm×7.0mm
DP-10	10.0 mm×44.0 mm×10.0 mm×14.1mm
DP-15	15.0 mm×64.0 mm×15.0 mm×21.2mm
DP-20	20.0 mm×81.3 mm×20.0 mm×28.3mm
DP-25	25 mm×105.7 mm×25.0 mm×35.4mm

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
