Rhomboid Prism

Name: Rhomboid Prism
Brand: ECOPTIK(CHINA)LTD

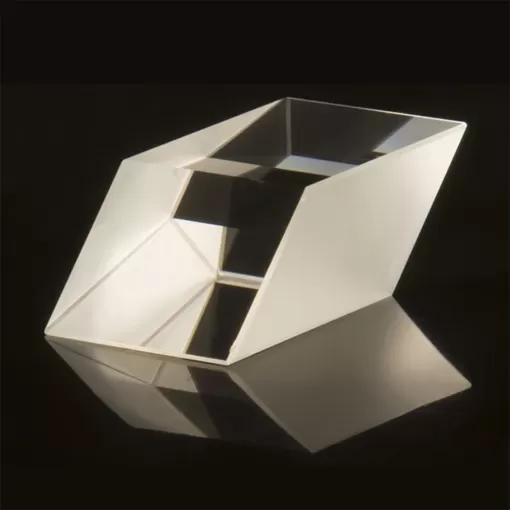

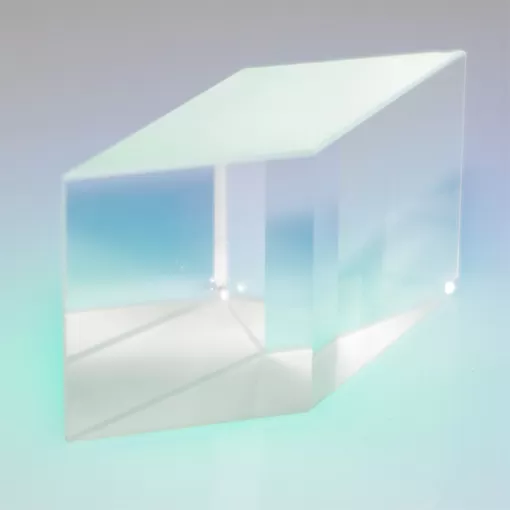

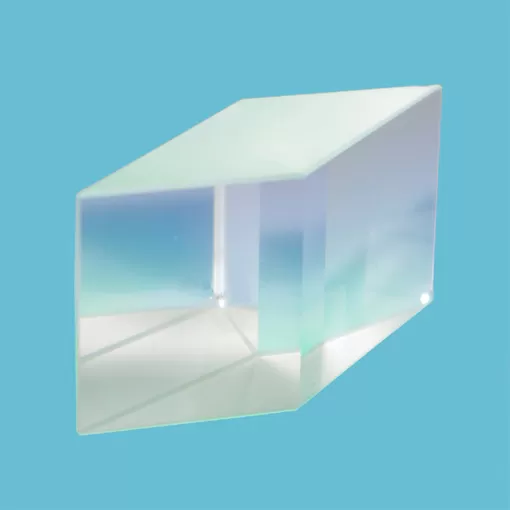

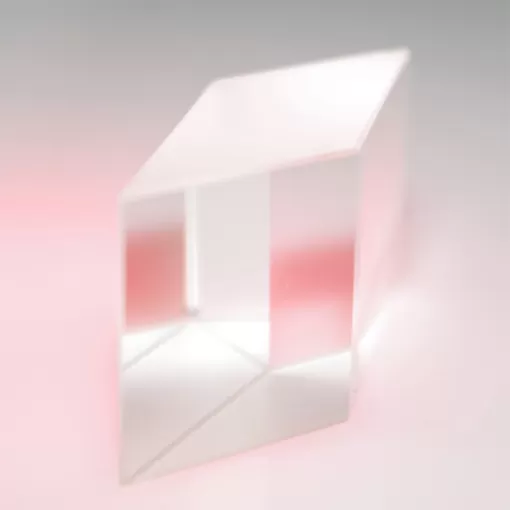

Rhombic prisms are used to displace a beam laterally without changing its direction. They may be coated to transmit part of the beam and produce two parallel and displaced emerging beams. Can be coated to produce a polarizing beam separator. These rhombic prisms are manufactured from either BK7A or Fused Silica. They are supplied uncoated but many coating options are available.

Uses Rhomboid Prism 

Descriptions Specifications

Descriptions

Descriptions of Rhomboid Prism

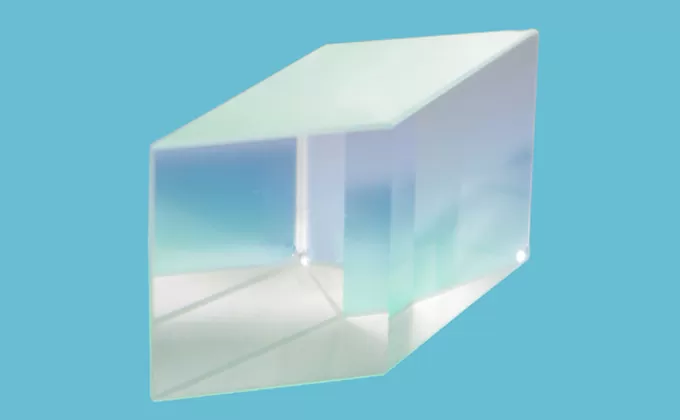

Ecoptik China rhomboid prisms are commonly used to displace a laser beam without changing its direction. In imaging applications, rhomboid prism will displace the optical axis without inverting the image. The lateral displacement is equal to the length of the prism. Rhombus prisms are widely used in the fields of optics, imaging, and photonics. They can be used to replace optical centerline beam folding and three-dimensional systems of different sizes. In modern life, optical rhomboid prisms are widely used in digital equipment, science and technology, medical equipment, and other fields.

Specifications

Specifications of Rhomboid Prism

Material:	BK7 glass / UV Fused Silica
Surface Flatness:	< λ / 8 @ 633 nm
Surface Quality:	60/40, 40/20, 20/10
Dimension Tolerance:	< + 0.00 / – 0.20 mm
Angular Deviation	< 3 arc min~ 30arc sec.
Clear Aperture:	> 85%
Bevel:	0.3 mm x 45°
Coating	As per customer’s request

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
