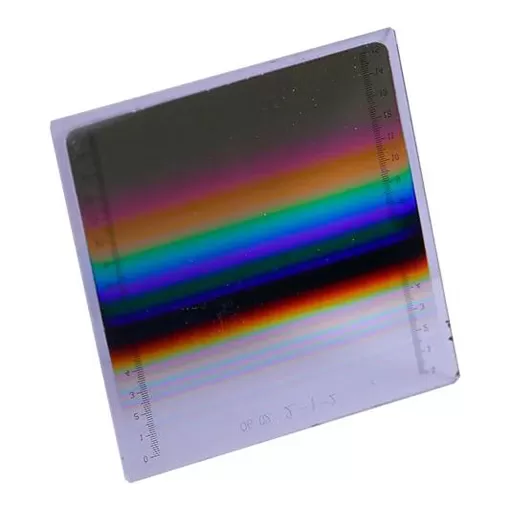

Band Pass Linear Variable Filter

Name: Band Pass Linear Variable Filter
Brand: ECOPTIK(CHINA)LTD

Linear variable filter adopts the continuous coating method and realizes the spatial continuous change of the filter characteristics based on the multi-layer wedge film structure. The target linear rate of change can be obtained by adjusting the slope of the film according to the dispersion requirement. Linear variable filter has high integrated spectral ability, which has irreplaceable advantages in the miniaturization and lightweight design of spectral instruments. Products are widely used in lightweight hyperspectral imaging spectrometer, portable spectrometer, medical endoscope.

Uses Band Pass Linear Variable Filter 

Specifications

Specifications of Band Pass Linear Variable Filter

Range of wavelength	400-1000nm
CWL	1.5%
Peak transmittance	≥60%
Depth of cut off	OD3
Wavelength of cut off	300-1100nm
Linear rate of variable	50nm/mm
Dimension	32mm×13mm
Effective size of variable area	11.3mm×11.3mm

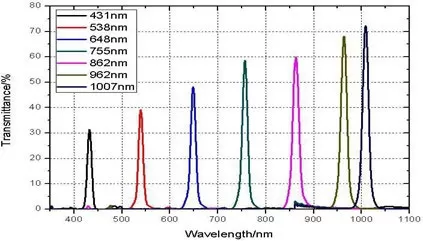

Specifications of Band Pass Linear Variable Filter

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
