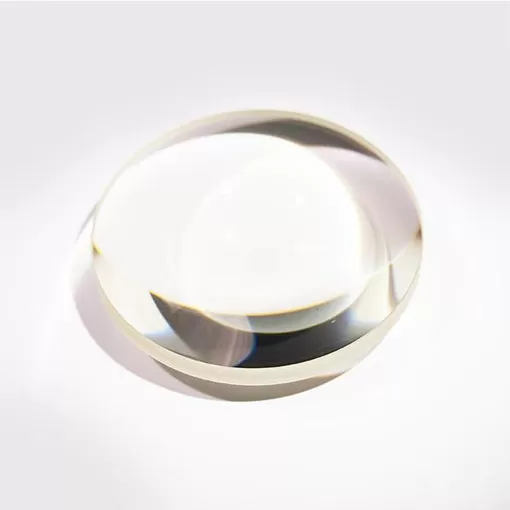

Calcium Fluoride (CaF2) Lens

Name: Calcium Fluoride (CaF2) Lens
Brand: ECOPTIK(CHINA)LTD

Calcium Fluoride (CaF2) Lenses are made of calcium fluoride substrate. Calcium fluoride material has a wide transmission spectrum range (180nm-8.0μm), with high damage threshold, low fluorescence, high uniformity and soft physical properties, is used as a basis for a variety of optical components.

Uses Calcium Fluoride (CaF2) Lens 

Descriptions Specifications

Descriptions

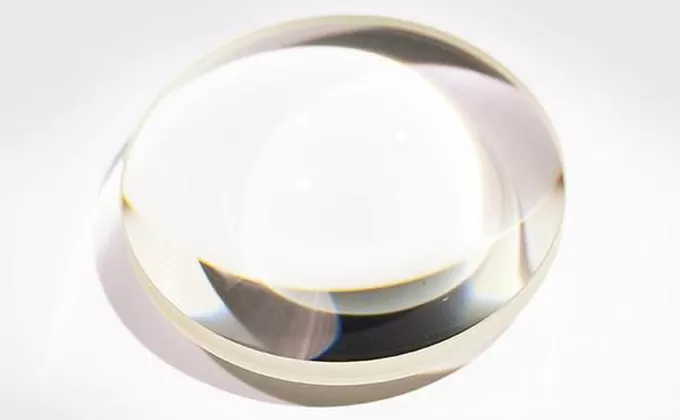

Descriptions of Calcium Fluoride (CaF2) Lens

Calcium fluoride has a high transmittance between ultraviolet and mid-infrared (250nm~7um), so it is widely used in the manufacture of prisms, windows and lenses, etc., in some applications with a wide spectral range, it can be used directly without coating, especially its small absorption and high laser threshold, which is very suitable for application in excimer laser optical systems.

As one of the main products of Ecoptik China, we can customize process high precision and quality calcium fluoride lenses.

Specifications

Specifications of Calcium Fluoride (CaF2) Lens

Material	Calcium Fluoride (CaF2)
Focal length tolerance	± 3%
Dimension tolerance	± 1%
Thickness tolerance	± 0.03mm
Surface accurcay	△/v=0.3nm
Surface quality	10/5
Centration	< 1 arc min
Clear aperture	> 90%
Chamfer	< 0.1

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
