Front Surface Mirror

Name: Front Surface Mirror
Brand: ECOPTIK(CHINA)LTD

Ecoptik China designs and manufactures optical mirrors with high reflectance, which can double the output power of the laser; it is reflected by the first reflecting surface, the reflected image is not distorted, and there is no ghosting.

Uses Front Surface Mirror 

Descriptions Specifications

Descriptions

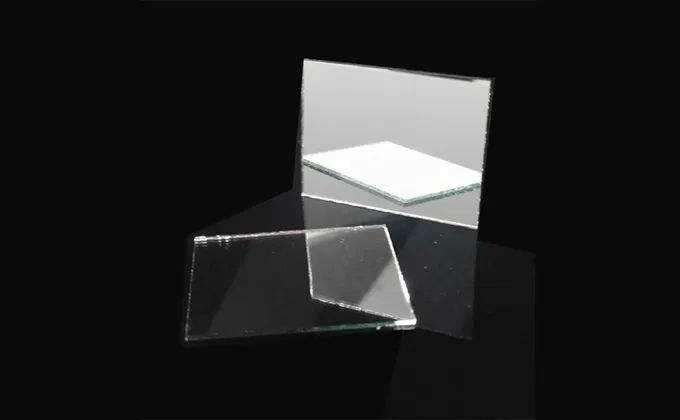

Descriptions of Front Surface Mirror

Description Of Front Surface Mirror

The Ecoptik China mirror with high reflectance can double the output power of the laser; it is reflected by the first reflecting surface, the reflected image is not distorted, and there is no ghosting, which is the reflection of the front surface. If a common optical mirror is used as the second reflecting surface, not only the reflectance is low, but also the wavelength is not selective, and ghosting is likely to occur. With the front coated film mirror, the obtained image is not only high in brightness, but also accurate and unbiased, the picture quality is clearer and the color is more realistic. Front surface mirrors are widely used for optical high fidelity scanning reflection imaging.

Specifications

Specifications of Front Surface Mirror

Reflection Rate
HR-94	R>94% @ 400~700nm	For Scanner，Copier，PTV，OHP, etc.
HR-97-#	R>97% @ SINGLE WANELENGT	For Scanner，PTV，LCD Projector. Etc.
HR-98-#
HR-780-A	R>97% @ IR wave length	For LBP(Laser Beam Printer) or other OAdigital Products
HR-780-B

Wavelength (nm)	Minimum reflectivity (%)
400	92
450	95.5
500	95.5
550	94.5
600	92.5
650	92
700	90

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
