Dielectric Mirror Cost

Dielectric Mirror

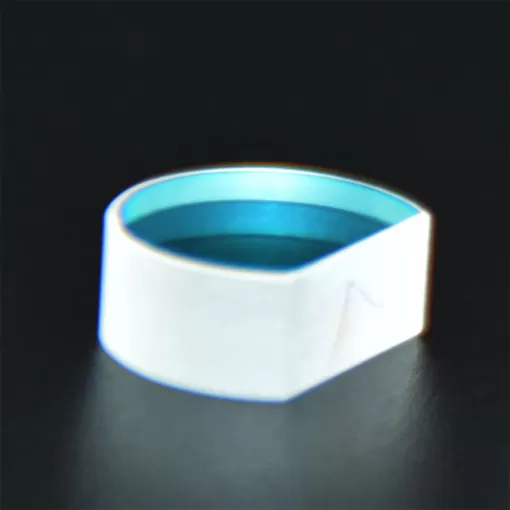

A dielectric mirror, also known as a Bragg mirror, is a type of mirror composed of multiple thin layers of dielectric material, typically deposited on a substrate of glass or some other optical material. By careful choice of the type and thickness of the dielectric layers, one can design an optical coating with specified reflectivity at different wavelengths of light. Dielectric mirrors are also used to produce ultra-high reflectivity mirrors: values of 99.999% or better over a narrow range of wavelengths can be produced using special techniques. Alternatively, they can be made to reflect a broad spectrum of light, such as the entire visible range or the spectrum of the Ti-sapphire laser. Mirrors of this type are very common in optics experiments, due to improved techniques that allow inexpensive manufacture of high-quality mirrors. Examples of their applications include laser cavity end mirrors, hot and cold mirrors, thin-film beamsplitters, and the coatings on modern mirrorshades. Ecoptik (also known as BRD Optical) has various dielectric mirror glass for sale. If you want to know the dielectric mirror cost or buy dielectric mirrors, please feel free to contact us.



Description of Broadband Dielectric Mirror For Sale

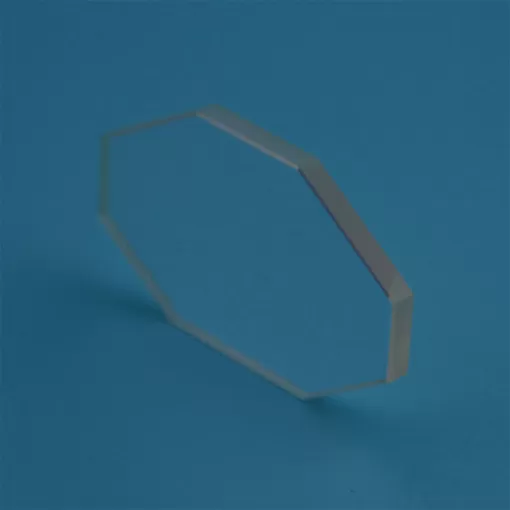

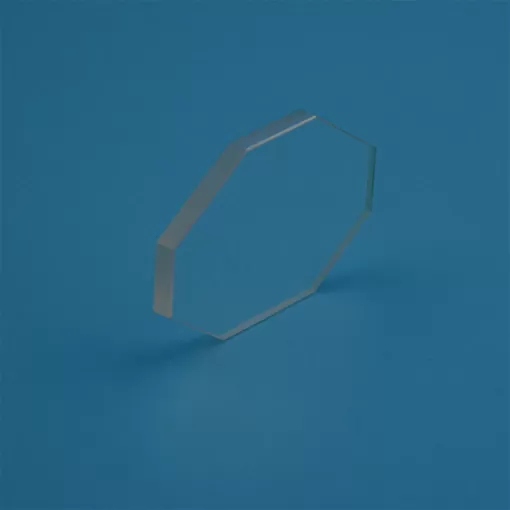

A dielectric mirror is an optical mirror made of thin layers of dielectric coating deposited on an optical substrate. We offer dielectric mirror glass for sale for fixed, narrowband or broadband wavelength applications covering wavelength ranges from UV to IR. Wide selection of round, elliptical or custom shapes as well as flat, spherical, cylindrical surface mirrors.

Ecoptik (also known as BRD Optical) provide the Visible broadband dielectric mirrors, UV dielectric coating, etc. If you want to know the dielectric mirror cost, please feel free to contact us.

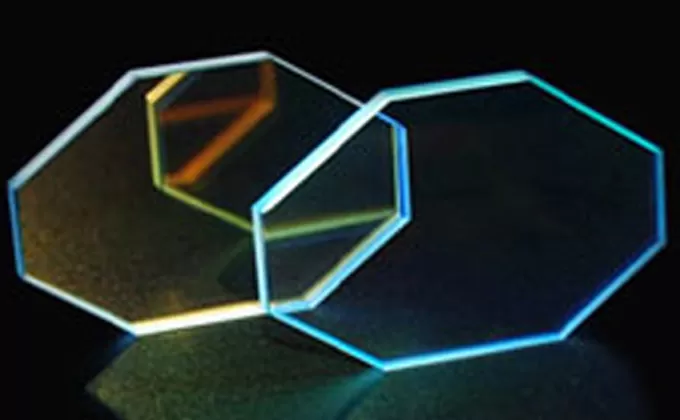

Description Of Broadband Dielectric Mirror

Specifications of Broadband Dielectric Mirror For Sale

StructureFlat, Sphere, Cylinder, or customized shape
SubstrateFused silica/ Silica/ BK7 Glass
Dimension2mm~100mm
Clear aperture>90% of dimension
Surface quality40/20, 20/10 Scratch-Dig
Surface Irregularityλ/2~λ/10 @632.nm
Thickness1mm~20mm
CoatingUV/ VIS dielectric coating
