Cylinder Lens

Cylinder

Cylinder Lenses are typically used to focus incoming light to a line, or to change the aspect ratio of an image. Cylindrical Lenses have a single cylindrical surface that causes incoming light to be focused in only a single dimension, stretching the image. Cylinder Lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping to circularize laser outputs.

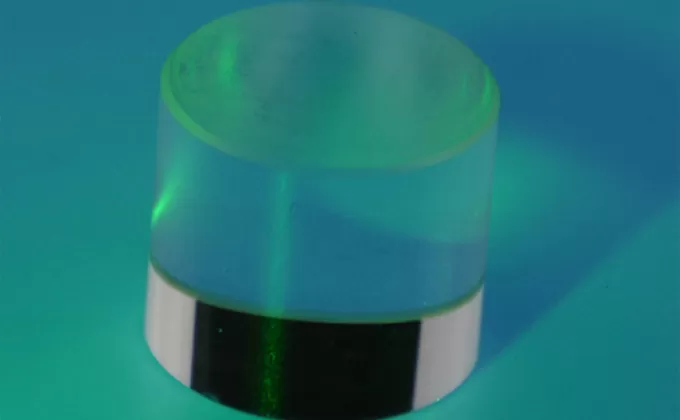

Description Of Cylinder Lens

Ecoptik (also known as BRD Optical) Cylinder Lenses are stretching the image. Cylinder Lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping to circularize laser outputs.

Specification Of Cylinder Lens


Items
Parameters

Material

Optical glass/ Fused silica/ sapphire   etc.

Dimension

2mm~100mm

Dimension   tolerance

±0.05mm~±0.1mm

Length

2mm~200mm

Surface   quality

60/40, 40/20, 20/10

Surface   accuracy

λ/2~λ/10@632.8nm,532nm

Clear   Aperture

>85% dig diameter

Centration

<3arc min~ 30arc sec

Coating

As per customer’s request
