Plano Concave Cylindrical Lens

Plano Concave Cylindrical Lens

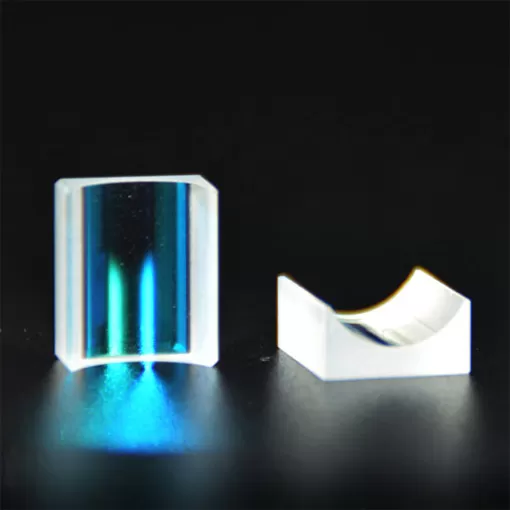

A plano-concave cylindrical lens is used to expand light in on-axis.  A negative cylindrical lens is able to diverge collimated input light away from a line.  Plano-concave cylindrical lenses are used for one-dimensional compression of images, anamorphic beam shaping, and laser line generation.

If you have the demand, please feel free to contact Ecoptik (also known as BRD Optical).

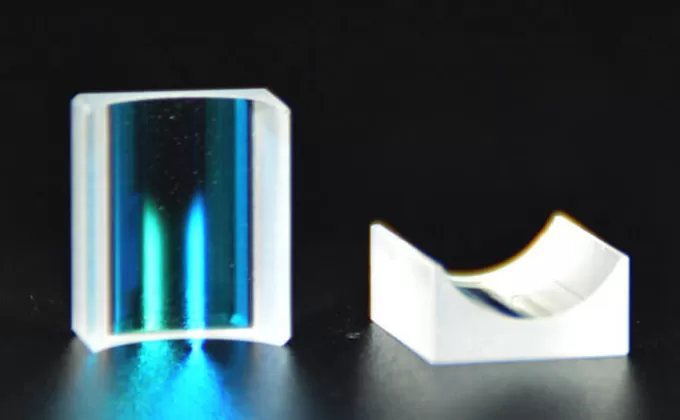

Descriptions Of Plano Concave Cylindrical Lens

  • The plano-concave cylindrical lens forms a divergent linear virtual image, which is used to control the size of the beam in one direction. The material of this lens is BK7, so it is not suitable for ultraviolet wavelengths.

  • The plano cylindrical lens is used in laser scanners, spectrometers, dye lasers, acousto-optics, optical processors, and other similar applications.

  • We use high-quality optical glass classical optics grinding, polishing processing techniques, surface accuracy of up to λ / 4, the finish may be 40/20. We can also be processed according to customer demand layers.

  • Cylindrical Lens Vs Spherical Lens: Spherical lenses are lenses taken out from a sphere such as a ball. Whereas cylindrical lenses are lenses taken out from a surface of a cylinder-like a tumbler. Cylindrical lenses have an axis associated with them. Both, spherical and cylindrical power can keep changing through life.

Specifications Of Plano Concave Cylindrical Lens

CommercialHigh precision
MaterialOptical glasses, fused silica, silica, etc.
Diameter0.5mm ~ 150mm
Diameter tolerance±0.1mm±0.02
Focal length-50mm ~ 2000mm
Focal length tolerance±2% (<10mm)
±0.5% <10mm – 1000mm)
±1% (>1000%)
Centraticon<3 arc min<10 arc sec
Clear aperture>85% ~92% of diameter
Surface quality ( Scratch / Dig)MIL 60/40MIL 10/5
Surface accuracyλ/4@632.8nmλ/10632.8nm
Bevel0.05mm~0.2mm x 45°
CoatingUp on  customer’s requirement.

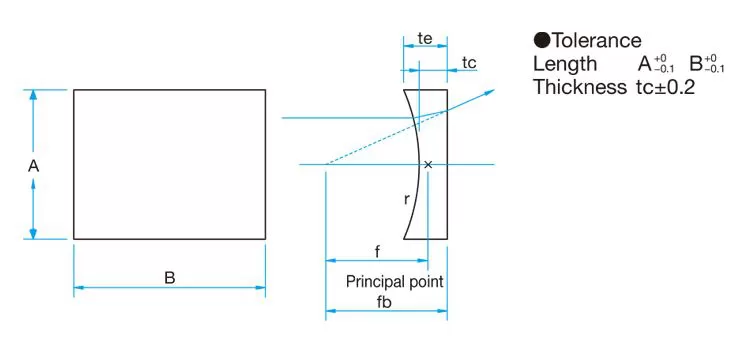

Drawing Of Plano Concave Cylindrical Lens

Drawing Of Plano Concave Cylindrical Lens
