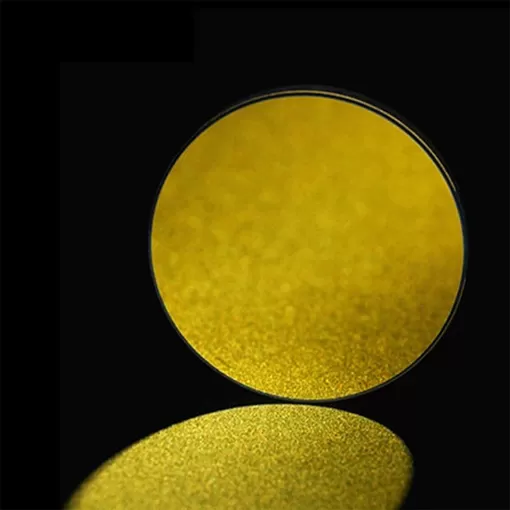

Glod (Au) Mirror

Name: Glod (Au) Mirror
Brand: ECOPTIK(CHINA)LTD

Ecoptik China provide the round, square and customized shape mirrors with a protected gold coating in various sizes. Protected gold is ideal for use in the IR wavelength range. The protective dielectric overcoat supplied by Ecoptik China is layered over the gold to help protect it from damage and make cleaning easier. These optics provide >96% average reflectance from 800nm to 20μm.

Uses Glod (Au) Mirror 

Descriptions Specifications

Descriptions

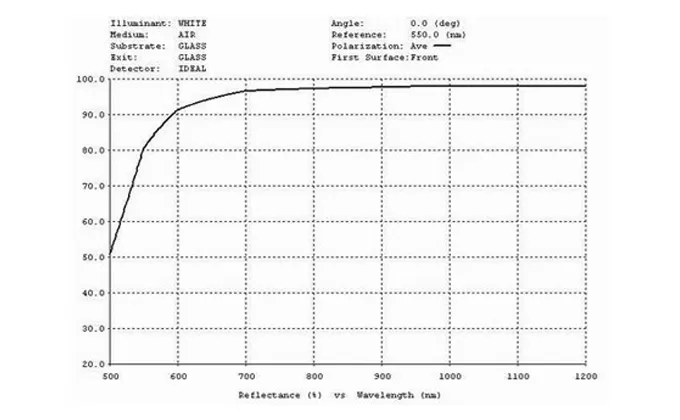

Descriptions of Glod (Au) Mirror

The optical mirror coated with metal (Au, Al, or Ag) over coated with silicon monoxide(SiO2). Metallic coatings have low peak reflectance, mechanical durability and damage threshold, but they have extremely broadband and low cost. They are insensitivity to angle of incident light and polarization.

Specifications

Specifications of Glod (Au) Mirror

Substrate	Fused silica/ Silica/ BK7 Glass
Dimension	2mm~100mm
Clear aperture	>90% of dimension
Surface quality	40/20, 20/10 Scratch-Dig
Surface Irregularity	λ/2~λ/10 @632.nm
Thickness	1mm~20mm

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
