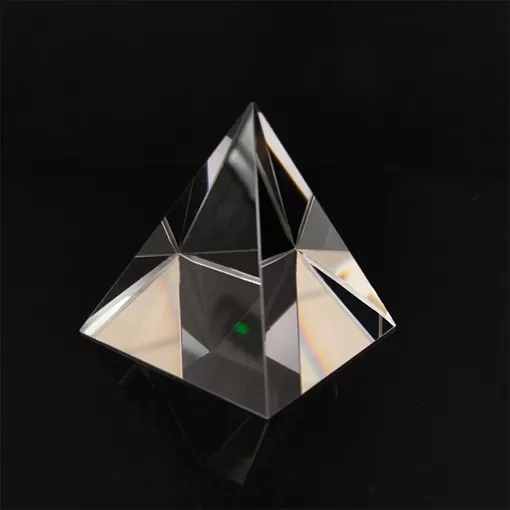

Pyramid Optical/Tetrahedral Prism

Name: Pyramid Optical/Tetrahedral Prism
Brand: ECOPTIK(CHINA)LTD

A pyramidal prism/angular cube reflector is always used to reflect a beam of light into the prism, regardless of the direction of the beam. Corner prisms are widely used where accurate alignment is difficult.

Corner optical prism rear reflector/pyramid prism is designed to reflect any light or beam entering the prism surface, regardless of the direction of the prism, can be reflected back to itself. The mirror can only be used at a normal Angle of incidence. Therefore, corner prism retroreflector is an ideal choice for accurate alignment. They have three total internal reflections that work even at very large incident angles. N - BK7 Corner Cube Retroreflectors is made by the precision of N - BK7, suitable for all kinds of visible light.

Uses Pyramid Optical/Tetrahedral Prism 

Descriptions Specifications

Descriptions

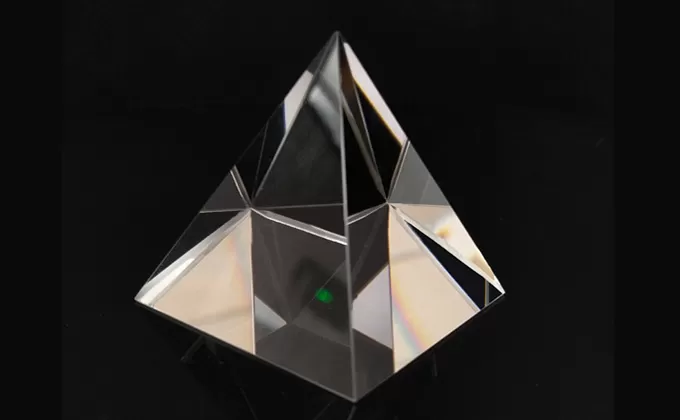

Descriptions of Pyramid Optical/Tetrahedral Prism

A tetrahedral prism, also known as a pyramidal prism, consists of four planes with different spatial directions. One of the four planes is the incidence/exit plane of light, and the other three planes with different spatial directions are the total reflection plane of light.

Specifications

Specifications of Pyramid Optical/Tetrahedral Prism

Material	N-BK7, Fused Silica
Dimension tolerance	±0.1mm
Clear aperture	>80%
Surface quality	60/40
Surface accuracy	λ/4@632.8nm
Angle tolerance	60°±3 arc min
Coating	Upon request

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
