Name: Scanning Mirror
Brand: ECOPTIK(CHINA)LTD

Scanning Mirror

The scanning mirror applications include ultra-high dynamic, low inertia scanning mirrors for laser processing, streak cameras, LIDAR, security, sensing and targeting applications, where the enhanced flexural strength, homogeneity, high resonant frequencies, ultra-low inertia, and optical surface quality are key.

Uses Scanning Mirror 

Descriptions of Scanning Mirror

Description Of Scanning Mirror

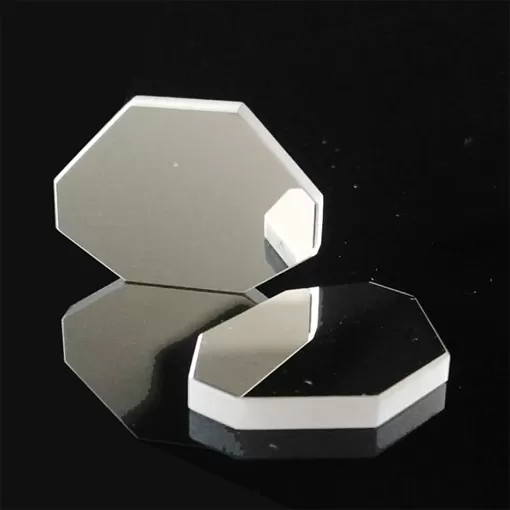

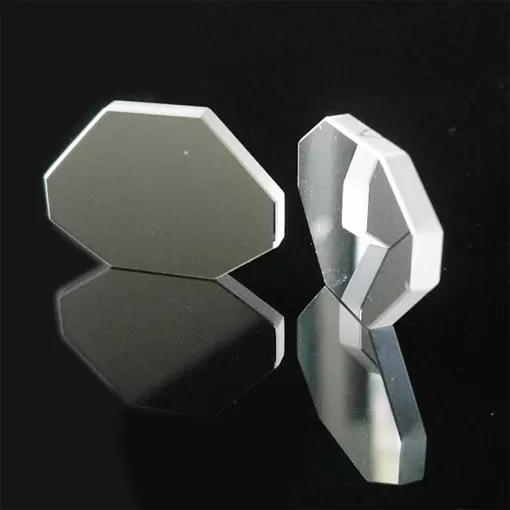

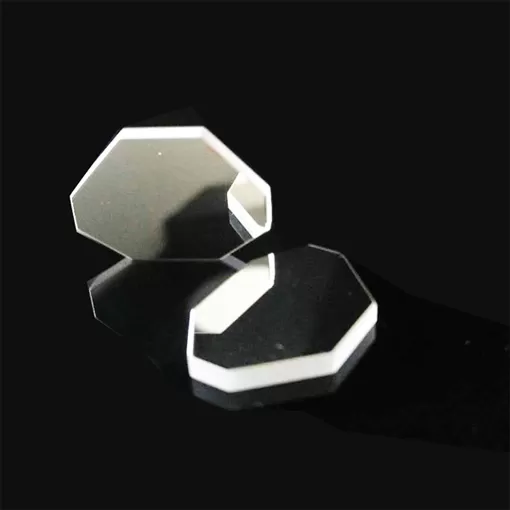

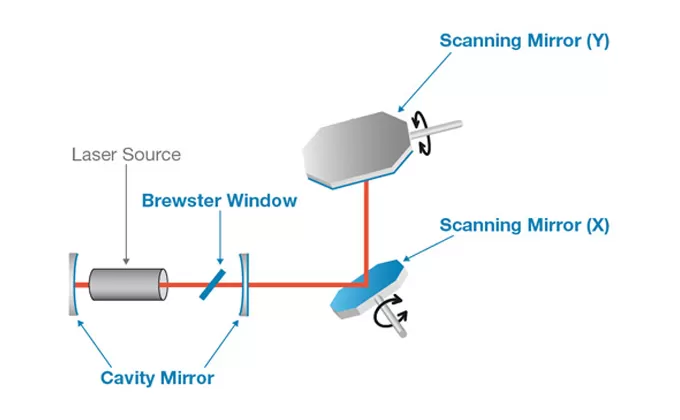

The scanning mirror of Ecoptik China(also known as BRD Optical) is light weight rectangular mirror that used for high speed two-axis laser scanning system. The dimensions for each laser scanning mirror have been calculated accordingly with the laser beam size. The optical mirror has high reflectivity of 99.5% or above. The scanning mirrors are usually mounted on to a galvanometer for scanning purposes. For two axis scan mirror, commonly the Y mirror has a bigger size compared with the X mirror. This is due to the fact that the X mirror is used to scan the Y mirror rather than the object directly.

Specifications of Scanning Mirror

Material	BK7 glass/ Fused silica/ Silica
Dimension	8mm~30mm
Dimension tolerance	±0.1mm
Thickness tolerance	+0.0mm / -0.05mm
Surface quality	20/10, 10/5
Flatness	λ/4 ~λ/10
Parallelism	<3o arc sec
Wavelength	1060nm, 1064nm, 532nm, 355nm,266nm
Coating R>99.5%	High reflecting coating / Dielectric coating / Metal coating

Type No.	Spot size	Dimension (mm)	Axis
BRD-SCM-T1.05	8.0	8.4 x 11.5 x1.05	X
BRD-SCM-T1.05	8.0	10.1 x15.1 x1.05	Y
BRD-SCM-T1.7	10.0	14.7 x 19.4 x 1.7	X
BRD-SCM-T1.7	10.0	16.4 x 28.0 x 1.7	Y
BRD-SCM-T2.0	20.0	25.0 x 30.0 x 2.0	X
BRD-SCM-T2.0	20.0	30.0 x 35.0 x 2.0	Y
BRD-SCM-T3.2A	12.0	18.3 x 24.6 x 3.2	X
BRD-SCM-T3.2A	12.0	21.3 x 38.9 x 3.2	Y
BRD-SCM-T3.2B	15.0	22.1 x 28.8 x 3.2	X
BRD-SCM-T3.2B	15.0	24.8 x 39.4 x 3.2	Y
