Name: ZnSe Lens
Brand: ECOPTIK(CHINA)LTD

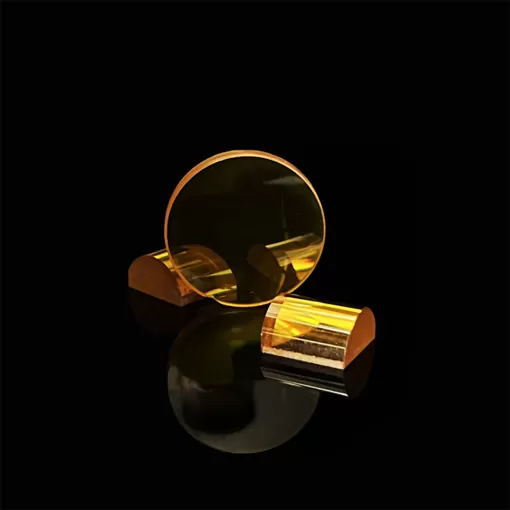

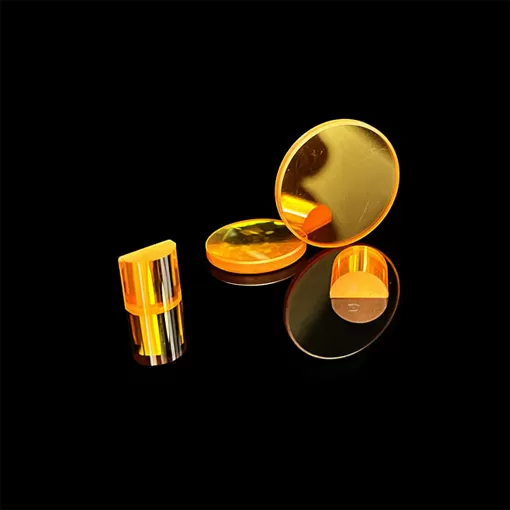

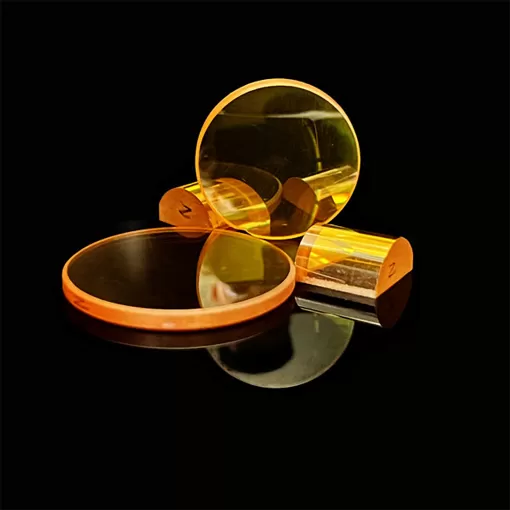

ZnSe Lens

Uses ZnSe Lens 

Descriptions of ZnSe Lens

ZnSe is a kind of chemically inert material with high purity, strong adaptability and easy processing. It has low optical transmission loss and good transmittance. With low absorption coefficient and high resistance to thermal shock, it is the preferred material for high-power CO2 laser optical elements. Because of the uniform and consistent refractive index of the infrared material, it is also an ideal material for the protection window and optical elements of the forward-looking infrared thermal imaging system. At the same time, the material is also widely used in medical and industrial thermal radiation measurement systems and infrared spectrometer species of Windows and lenses. ZnSe is a scratch and soft material, not suitable for harsh environment.

Specifications of ZnSe Lens

Material	ZnSe (Zinc Selenide)
Design wavelength	10.6͢m
Focal length tolerance	± 1%
Dimension tolerance	+0.0/-0.1mm
Thickness tolerance	±0.2mm
Surface accurcay	λ/2@632.8nm
Surface quality	60-40
Centration	< 3 arc min
Clear aperture	> 80%
Chamfer	< 0.2 x 45°
Coating	IR AR Coating 8-12 μm

Laser Focus Lens

ECOPTIK using USA import CVD material, material has no impurity absorption, scattering loss is very low. Therefore, become the preferred materials for optical device fabrication of high-power CO2 laser system. In addition, in the whole transmission band, but also in the different optical systems commonly used materials.

Part No.	Diameter		Focal Length		Thickness		Material
Part No.	mm	inch	mm	inch	mm	inch
ECO-CL-D12.7F50.8	12.7	0.5	50.8	2	1.6	0.06	CVD ZnSe, GaAS
ECO-CL-D15F38.1	15	0.59	38.1	1.5	1.8	0.07	CVD ZnSe, GaAS
ECO-CL-D18F50.8	18	0.71	50.8	2	2	0.08	CVD ZnSe, GaAS
ECO-CL-D19.05F63.5	19.05	0.75	63.5	2.5	2	0.08	CVD ZnSe, GaAS
ECO-CL-D20F50.8	20	0.79	50.8	2	2	0.08	CVD ZnSe, GaAS
ECO-CL-D20F63.8			63.5	2.5	2	0.08	CVD ZnSe, GaAS
ECO-CL-D20F75			75	3	2	0.08	CVD ZnSe, GaAS
ECO-CL-D20F101.6			101.6	4	2	0.08	CVD ZnSe, GaAS
ECO-CL-D20F127			127	5	2	0.08	CVD ZnSe, GaAS
ECO-CL-D20F190.5			190.5	7.5	2	0.08	CVD ZnSe, GaAS
ECO-CL-D25.4F101.6	25.4	1	101.6	4	2.5	0.1	CVD ZnSe, GaAS
ECO-CL-D25.4F50.8			50.8	2	2.5	0.1	CVD ZnSe, GaAS
ECO-CL-D25.4F63.5			63.5	2.5	2.5	0.1	CVD ZnSe, GaAS

The suitable laser wavelength λ=10.6um，usual focal length:F38.1mm,F50.8mm,F63.5mm,etc.

We provide the customized producing.
