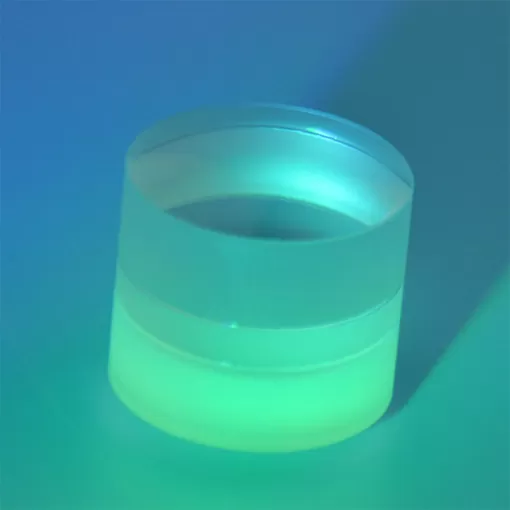

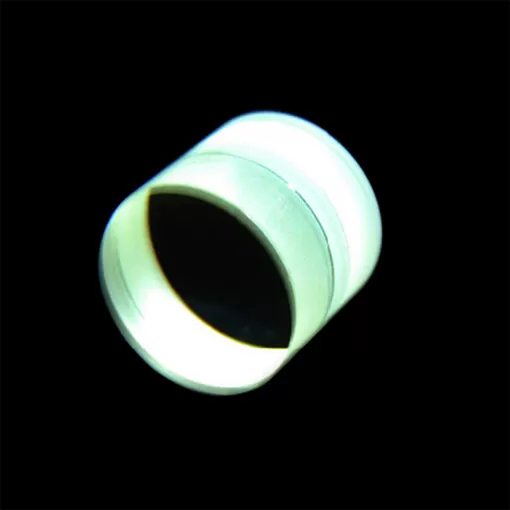

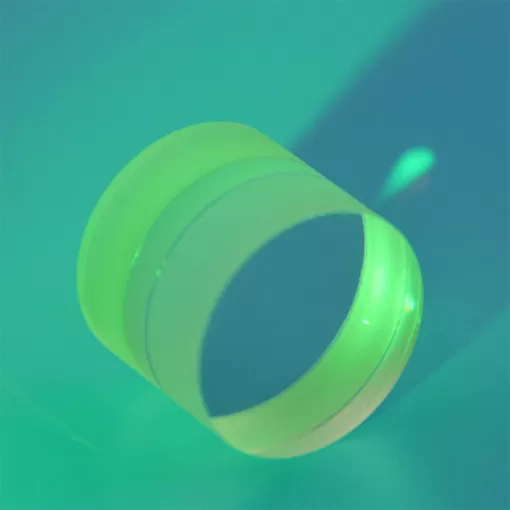

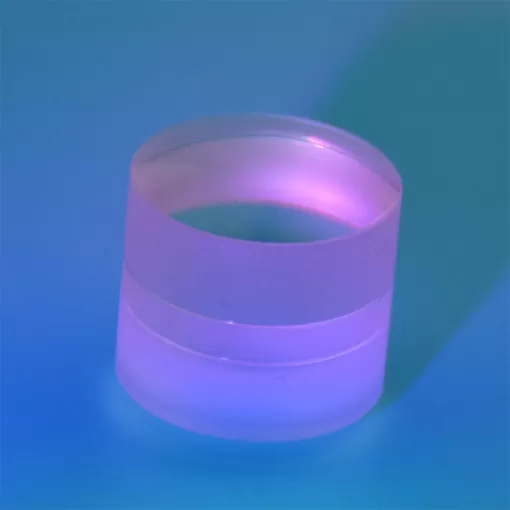

Achromatic Cemented Lens

Name: Achromatic Cemented Lens
Brand: ECOPTIK(CHINA)LTD

Achromatic Cemented Lens is used to minimize or eliminate chromatic aberration. The achromatic design also helps minimize spherical aberrations. Achromatic Cemented Lenses are ideal for a range of applications, including fluorescence microscopy, image relay, inspection, or spectroscopy. An Achromatic Cemented Lens, which is often designed by either cementing two elements together or mounting the two elements in a housing, creates smaller spot sizes than comparable singlet lenses.

The achromatic cemented lens can also be called an achromatic doublet lens or achromatic cemented lens. If you want to know more information, please contact us.

Uses Achromatic Cemented Lens 

Description Specification

Description

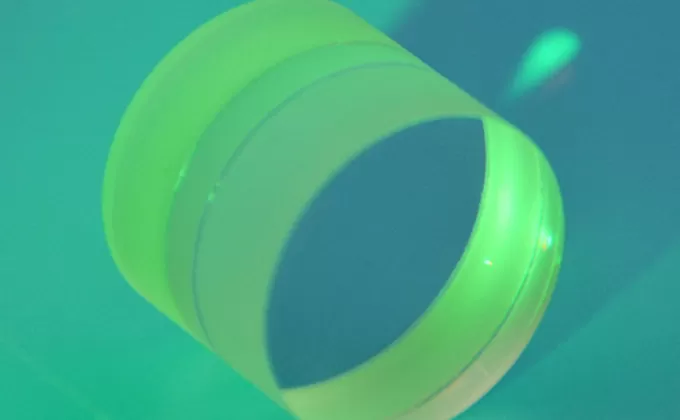

Description Of Achromatic Coated Lens

The Achromatic Coated Lens, which is often designed by either cementing two elements together or mounting the two elements in a housing, creates smaller spot sizes than comparable singlet lenses.

Specification

Specification Of Achromatic Coated Lens

Material	Optical Flint glass & Crown glass
Diameter	6mm~200mm
Diameter Tolerance	±0.05mm(≤50mm)
Diameter Tolerance	±0.1mm(＞50mm)
Focal Length	50mm~2000mm
Focal Length Tolerance	±0.2%（＜10mm）
	±0.5%（＜10mm-1000mm）
	±1%（＜＞1000mm）
Center Thickness	2mm~50mm
Surface Quality	60/40， 40/20， 20/10
Surface Accuracy	λ/2~λ/10@632.8nm，532nm
Clear Aperture	>85% dig diameter
Centration	<3arc min~ 30arc sec
Coating	As per the customer's request

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
