Anamorphic Prism

Name: Anamorphic Prism
Brand: ECOPTIK(CHINA)LTD

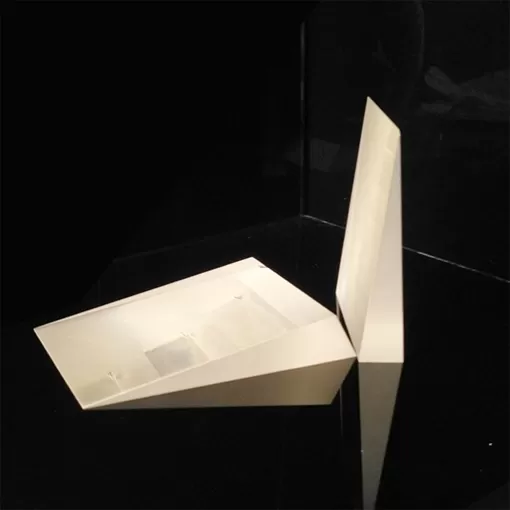

An anamorphic prism pair is a pair of prisms which is usually used for reshaping the profile of a laser beam. For example, the elliptical beam from a laser diode can be transformed into a beam with circular cross-section, as is needed for many applications, by using an optical prism pair as a beam expander for only one direction (e.g., the horizontal one). Of course, one can also just modify the ellipticity, or convert a circular beam into an elliptical one.

Uses Anamorphic Prism 

 

Descriptions Specifications

Descriptions

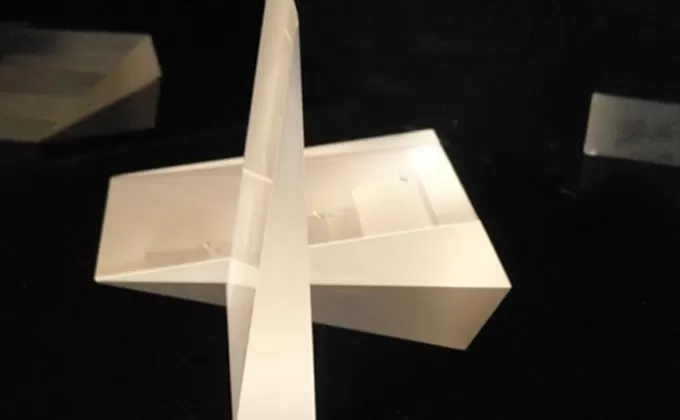

Descriptions of Anamorphic Prism

Diode lasers usually have elliptical beam profiles. In most cases, though, the shape of the circular beam is required, such as pattern matching with the external resonator to make the beam size adapt to the small aperture through the isolator. A deformed pair of anamorphic prisms is used to transform an elliptical laser diode beam into an approximately circular beam to amplify an elliptical beam in one dimension.

Specifications

Specifications of Anamorphic Prism

Material	SF11
Dimension Tolerances	+0.0, -0.2 mm
Surface Flatness	<λ/8 @ 632.8 nm
Surface Quality	60-40 scratch & dig
Theta Angle	29°27' ± 3"
Clear Aperture	> 85% in central circular dimension
Coating	MgF2 single layer on perpendicular surface

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
