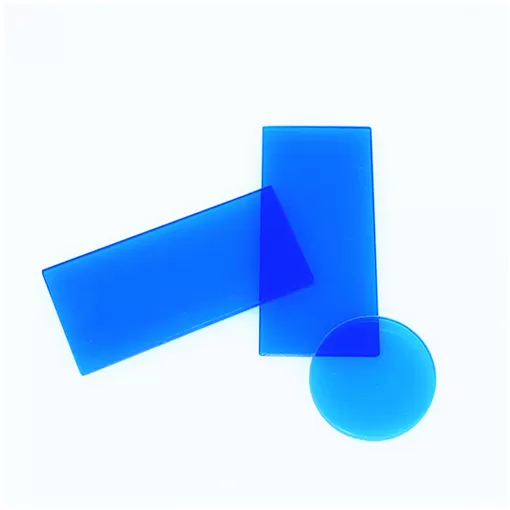

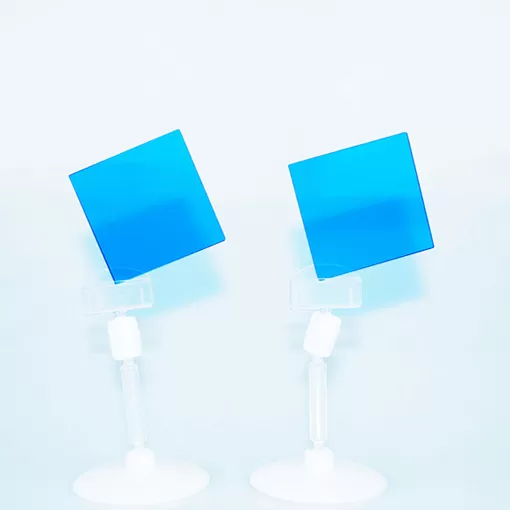

Narrow Bandpass Filter

Name: Narrow Bandpass Filter
Brand: ECOPTIK(CHINA)LTD

Based on the technique of all-dielectric hard coating and the principle of dielectric interference, and based on the characteristics of narrow-band optical pass filters, the optical properties are independent of the substrate. The narrow-band filter produced by Ecoptik China is more convenient to be built into the instrument imaging system so that its optical performance can be improved and effectively applied. The special optical material substrate is used to solve the problem that the absorption type synthetic glass is easy to mold and the optical performance is unstable. The narrow-band optical pass filters are produced according to the customer's index requirements.

Uses Narrow Bandpass Filter 

Descriptions Specifications

Descriptions

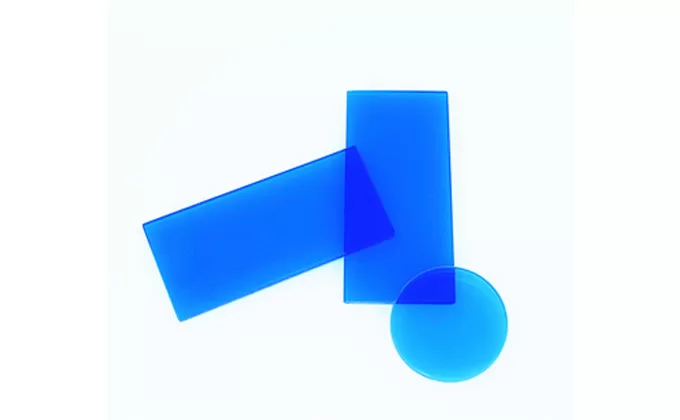

Descriptions of Narrow Bandpass Filter

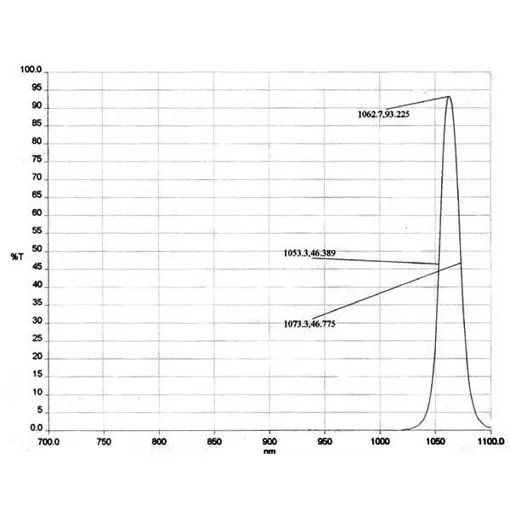

Bandwidth refers to the distance between two positions in the passband whose transmittance is half of the peak transmittanceThe above six parameters must be taken into account in the use and selection of narrow-band filters. Different performance indexes require different manufacturing costs of filters.

Specifications

Specifications of Narrow Bandpass Filter

Material	Optical glass BK7/ Fused silica
Surface quality	40/20, 20/10
Thickness range	0.5mm-5.0mm or upon the customer’s request
FWHM	20nm, 30nm,40nm,50nm,60nm or upon the customer’s request
Wavelength range	340nm, 380nm, 405nm, 450nm, 492nm 510nm,546nm,578nm, 600nm,620nm,630nm,650nm,850nm,805nm, 940nm, 1064nm
OD	OD3, OD4, OD5
Dimension	3mm-200mm

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
