Ecoptik China can provide the hemisphere, not only a glass dome but also an acrylic dome with flange is widely used with all kinds of cameras such as CCTV, ROVs, etc. The flanges are easier to install. Of course, it retains all its optical properties.
In the current market, more are acrylic domes with flange, After all, the acrylic material is easier to form, but its optical properties are limited, secondly, its surface is easy to be engraved, which will greatly reduce the imaging effect.
It is harder for glass to form and make useful optical elements, Through repeated design and experiment, Ecoptik China has successfully produced an autumn optical dome with flange.
Description

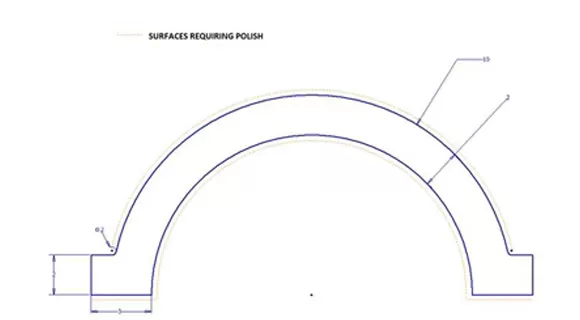

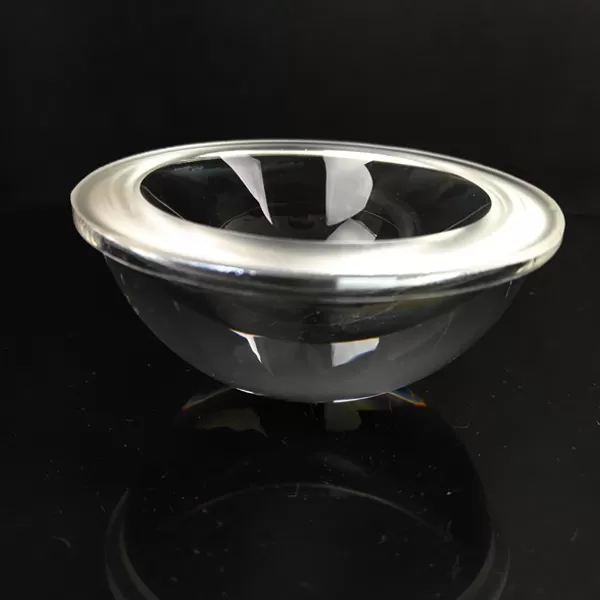

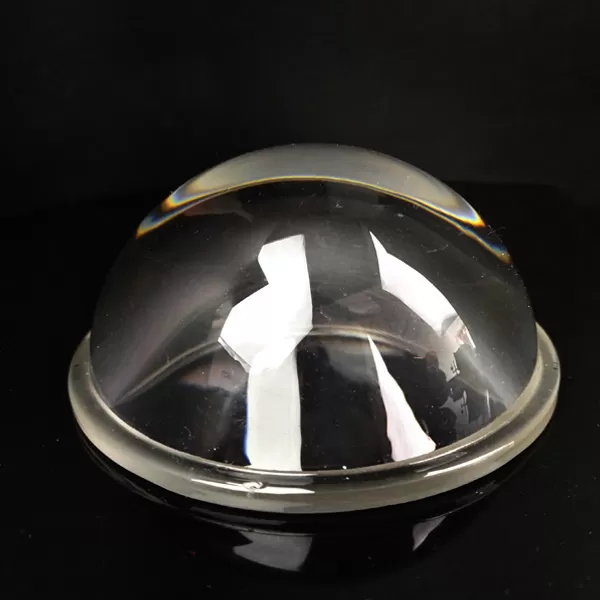

Ecoptik China (also known as BRD Optical)can provide the Hyper hemisphere Dome lens, not only a glass dome but also a dome with flange is widely used with all kinds of cameras such as CCTV, ROVs, etc. The flanges are easier to install. Of course, it retains all its optical properties.
In the current market, more are acrylic products, After all, the acrylic material is easier to form, but its optical properties are limited, secondly, its surface is easy to be engraved, which will greatly reduce the imaging effect.
It is harder for glass to form and make useful optical elements, Through repeated design and experiment, Ecoptik China (also known as BRD Optical) has successfully produced an autumn optical dome with flange.
Specification
| Material | Optical glass BK7 / Fused silica |
| Out diameter | 20mm~120mm |
| Thickness | 2mm~5mm |
| Surface quality | 60/40 |
| Fringe | 10（5） |
| Centration | <2um |
We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
