Infrared (IR) Dome

Infrared (IR) Dome

Ecootik IR Optical dome lens is composed of two parallel optical surfaces, (A convex surface & A Concave surface). Normally we can control the parallel tolerance <±2μm. A perfect parallel surface, in the imaging, the image does not distort, and in the measurement of light, the light does not distort. Ecootik Dome, the optical properties are unique, which produced by the optical technology of optical grinding and polishing.

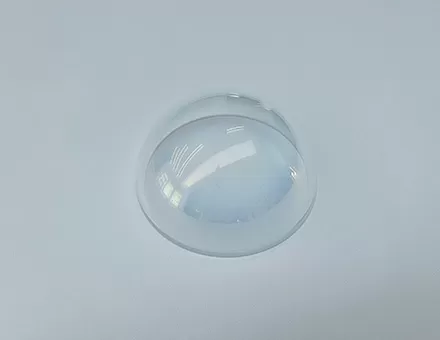

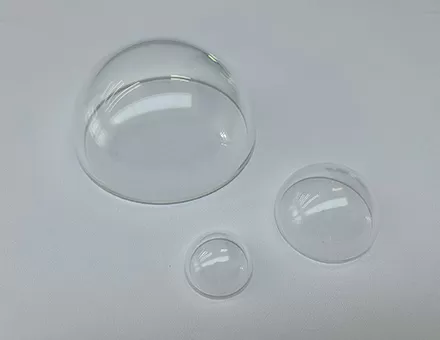

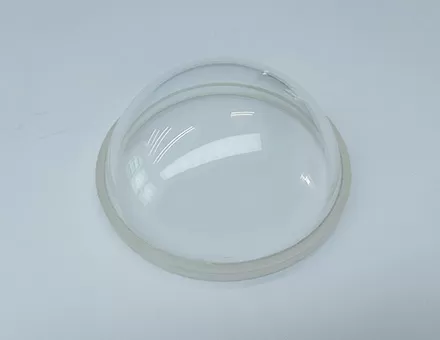

Ecootik Dome lens mainly are hemisphere, hyper-hemisphere and customized designing. Whether it is visible dome, UV dome or IR dome, Ecootik Dome has been confirmed in the international market. Ecootik dome is found in areas such as defense technology, weather monitoring and optical imaging.


Description Of Infrared (IR) Dome

Ecoptik dome lens is composed of two parallel optical surfaces, (A convex surface & A Concave surface). Normally we can control the parallel tolerance <±2μm. A perfect parallel surface, in the imaging, the image does not distort, and in the measurement of light, the light does not distort. Ecoptik Dome, the optical properties are unique, which produced by the optical technology of optical grinding and polishing.


Ecoptik Dome lens mainly is hemisphere, hyper-hemisphere and customized designing. Whether it is a visible dome, UV dome or IR dome, Ecoptik Dome has been confirmed in the international market. Ecoptik dome is found in areas such as defence technology, weather monitoring and optical imaging.

Specification Of Infrared (IR) Dome


1, Substrate: IR material  (Fused Silica JGS3, Sapphire)

2, Dimension: 10mm-350mm

3, Thickness: 1mm-10mm

4, Surface Quality: 60/40, 40/20, 20/10

5, Surface fringe: 10(5)-3(0.5)

6, Coating: Antireflection (AR) Coating
