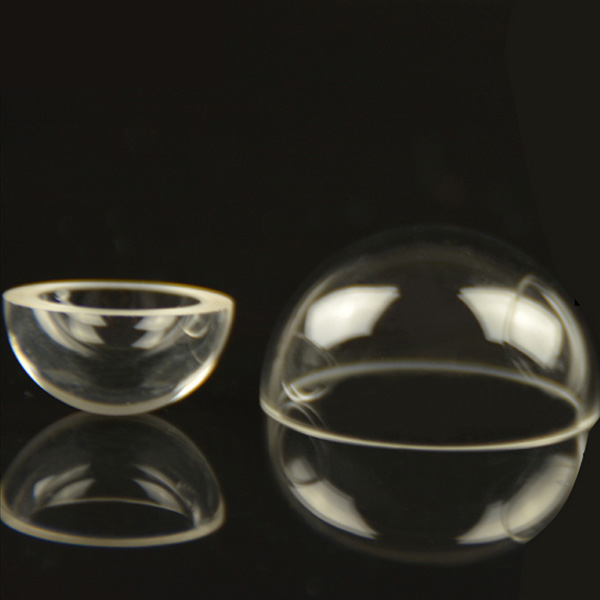

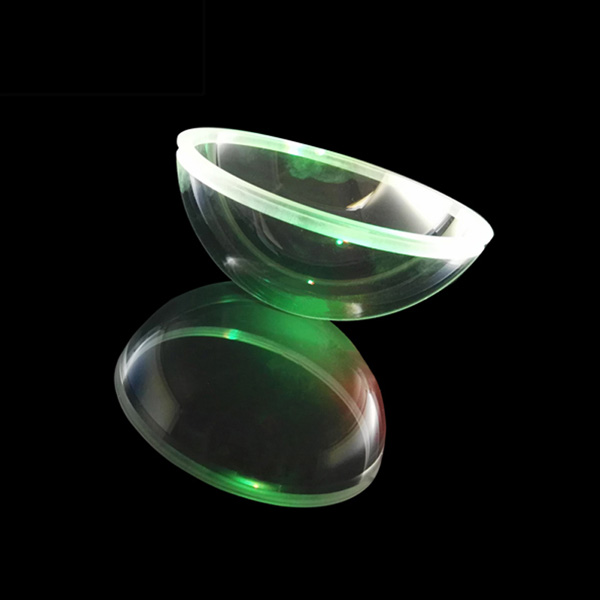

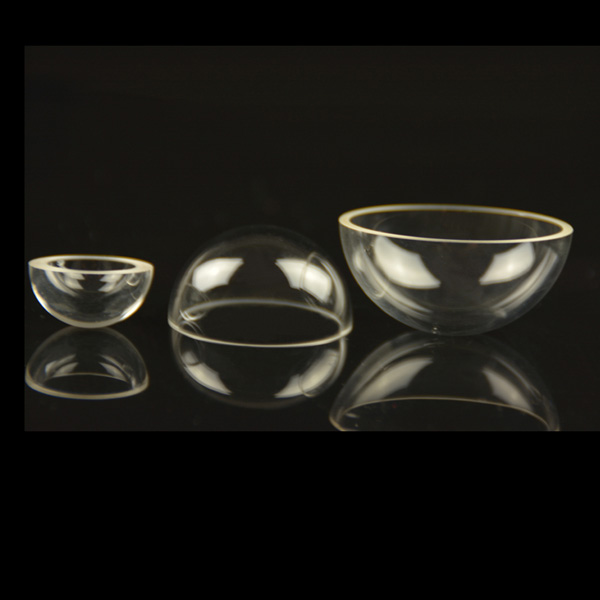

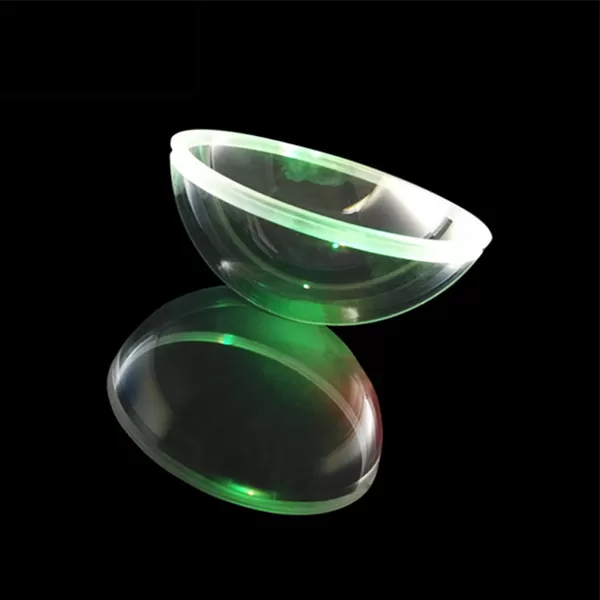

Ultraviolet (UV) Dome

Ultraviolet (UV) Dome

Ecoptik UV Optical dome lens is composed of two parallel optical surfaces, (A convex surface & A Concave surface). Normally we can control the parallel tolerance <±2μm. A perfect parallel surface, in the imaging, the image does not distort, and in the measurement of light, the light does not distort. Ecoptik Dome, the optical properties are unique, which are produced by the optical technology of optical grinding and polishing.


Ecoptik Dome lens mainly is hemisphere, hyper-hemisphere and customized designing. Whether it is a visible dome, UV dome or IR dome, Ecoptik Dome has been confirmed in the international market. Ecoptik dome is found in areas such as defence technology, weather monitoring and optical imaging.


Description Of Ultraviolet (UV) Dome


Ecoptik (also known as BRD Optical) dome lens is composed of two parallel optical surfaces, (A convex surface & A Concave surface). Normally we can control the parallel tolerance <±2μm. A perfect parallel surface, in the imaging, the image does not distort, and in the measurement of light, the light does not distort. Ecoptik Dome, the optical properties are unique, which are produced by the optical technology of optical grinding and polishing.


Ecoptik Dome lens mainly is a hemisphere, hyper-hemisphere and customized designing. Whether it is a visible dome, UV dome or IR dome, Ecoptik Dome has been confirmed in the international market. Ecoptik dome is found in areas such as defence technology, weather monitoring and optical imaging.


Specification Of Ultraviolet (UV) Dome


1, Substrate: UV material (fused silica JGS1, Borosilicate glass)

2, Dimension: 10mm-350mm

3, Thickness: 1mm-10mm

4, Surface Quality: 60/40, 40/20, 20/10

5, Surface fringe: 10(5)-3(0.5)

6, Coating: Antireflection (AR) Coating

7, Strenthened via heat treatment (tempering)
