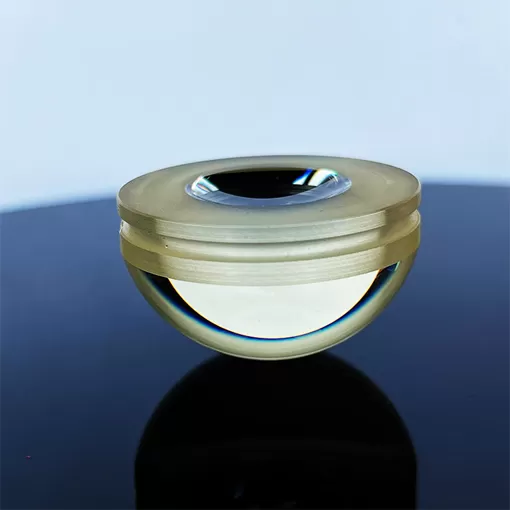

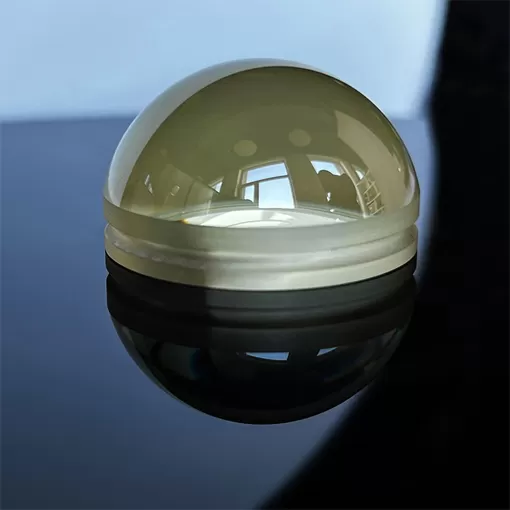

Hyper Hemisphere Lens

Name: Hyper Hemisphere Lens
Brand: ECOPTIK(CHINA)LTD

Ecoptik China is dedicated to customized, high-precision optical component processing. The super hemispherical lens is processed according to the customer's drawings. Ecoptik China is good at special shape and high-precision processing, and design processing flow according to customer's drawings and specifications.

Uses Hyper Hemisphere Lens 

Descriptions Drawings

Descriptions

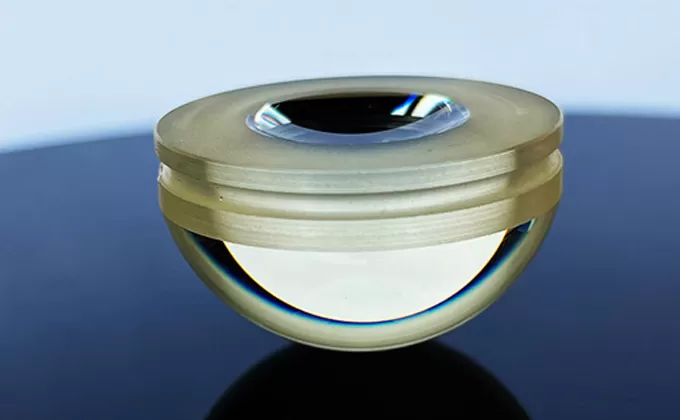

Descriptions Of Custom Hyper Hemisphere Lens

A customized high-precision hyper hemispheric lens with a meniscus structure.

Main features

The substrate is high refractive index optical glass (nd>2.0).
Unique groove design for easy assembly(R=1mm)
Tight diameter tolerances (+0/-0.03mm)
AR coating@1064nm AOI=0°

Uses

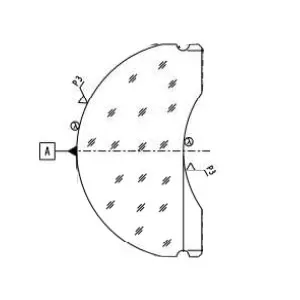

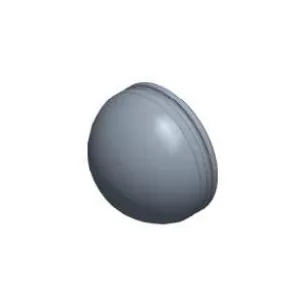

Drawings Of Custom Hyper Hemisphere Lens

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
