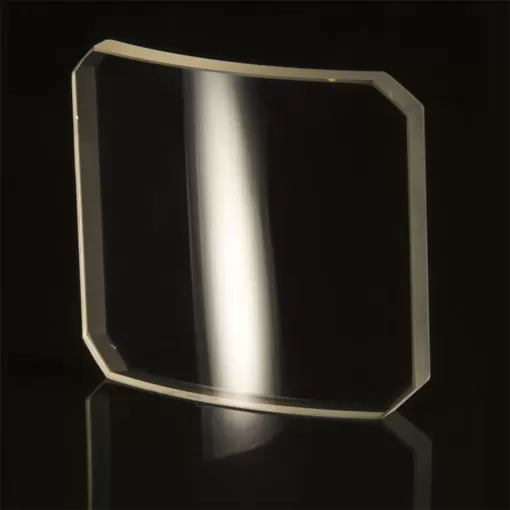

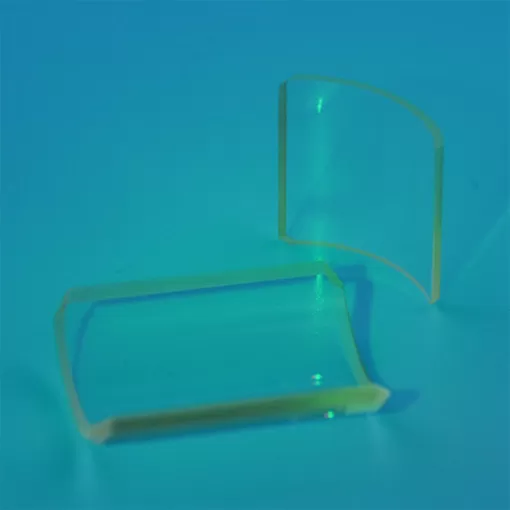

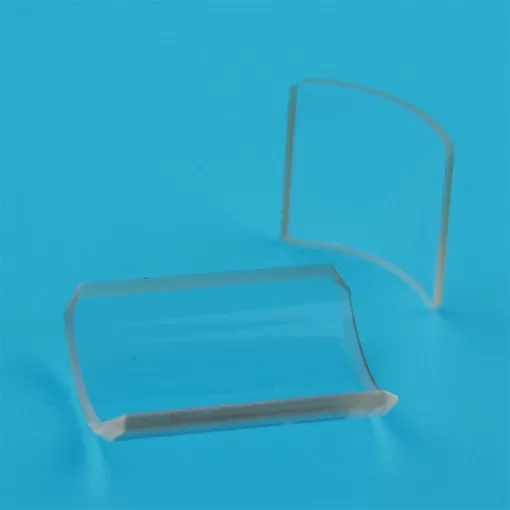

Meniscus Cylindrical Lens

Name: Meniscus Cylindrical Lens
Brand: ECOPTIK(CHINA)LTD

Meniscus Cylindrical Lens can increase the NA of the system while only adding slightly to the total spherical aberrations. The Negative Meniscus Lens is used to increase the focal length of another lens while maintaining the angular resolution of the optical assembly. This lens shape is best used when one conjugate is relatively far from the lens.

Uses Meniscus Cylindrical Lens 

 

Description Specification Drawing

Description

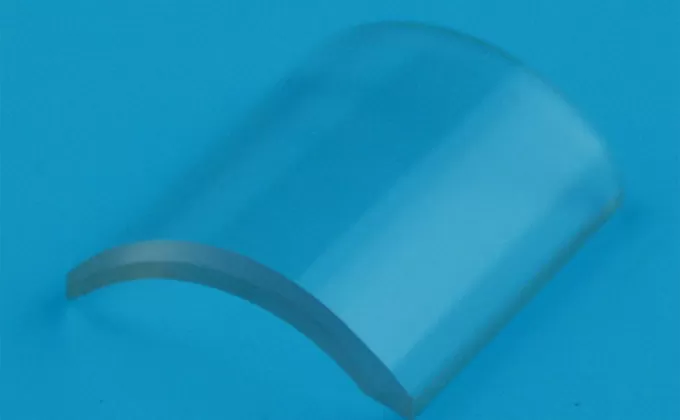

Description Of Meniscus Cylindrical Lens

It is a lens that one surface is the convex shape, another surface is concave with a cylindrical shape, its role is making beam converging or diverging on a plane, and that beam doesn’t work for the perpendicular plane(cylindrical axis) with it. A cylindrical lens is used in turning a transmitted plane wave into a cylindrical wave, or turn an original cylindrical wave into a plane wave or spherical wave, such a kind of lens can correct ocular astigmation.

Ecoptik China(also known as BRD Optical) uses classical processing technology and strict process control to ensure that the surface accuracy of the lens is sufficient to meet customer requirements. At the same time, we use the Zygo interferometer to perform multiple corrections and measurements during and final processing of the surface progress.

Specification

Specification Of Meniscus Cylindrical Lens

Commercial	High precision
Material	Optical glasses, fused silica, silica, etc.
Diameter	0.5mm ~ 150mm
Diameter tolerance	±0.1mm	±0.02
Focal length	-50mm ~ 2000mm
Focal length tolerance	±2% (<10mm)
	±0.5% <10mm – 1000mm)
	±1% (>1000%)
Centraticom	<3 arc min	<10 arc sec
Clear aperture	>85% ~92% of diameter
Surface quality ( Scratch / Dig)	MIL 60/40	MIL 10/5
Surface accuracy	λ/4@632.8nm	λ/10632.8nm
Bevel	0.05mm~0.2mm x 45°
Coating	Up on customer’s requirement.

Uses

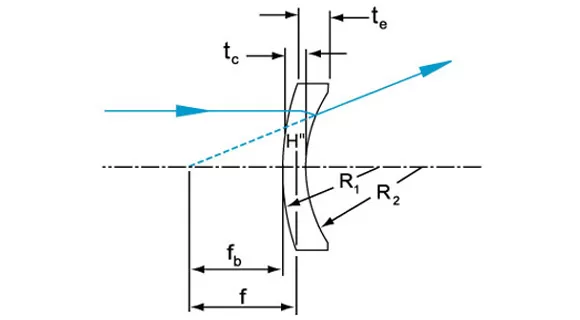

Drawing Of Meniscus Cylindrical Lens

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.
