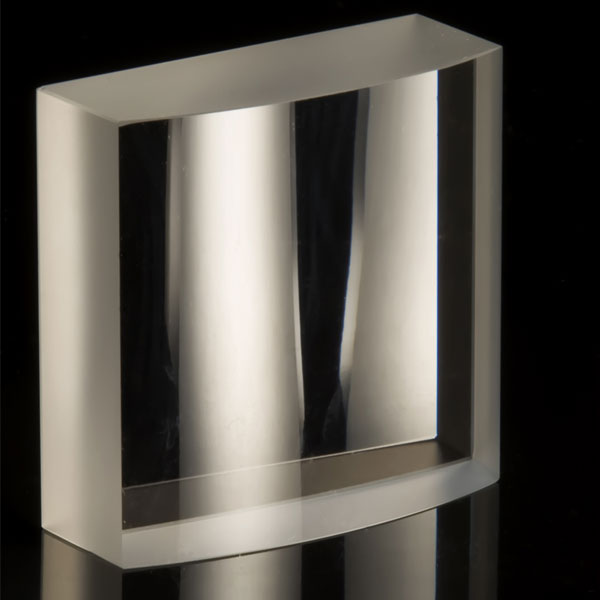

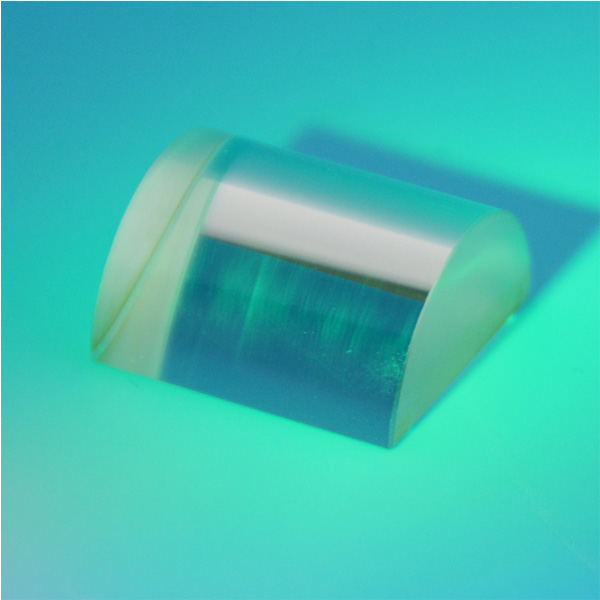

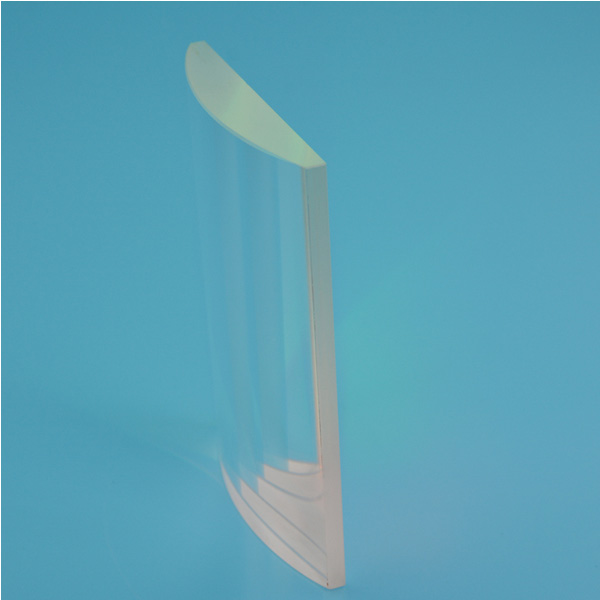

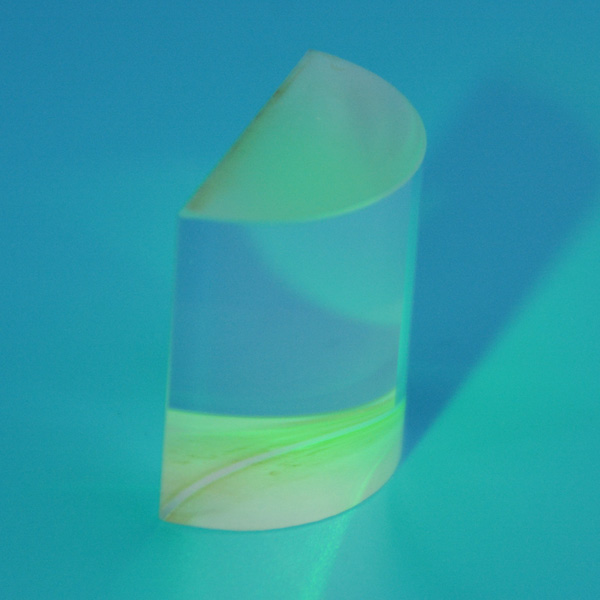

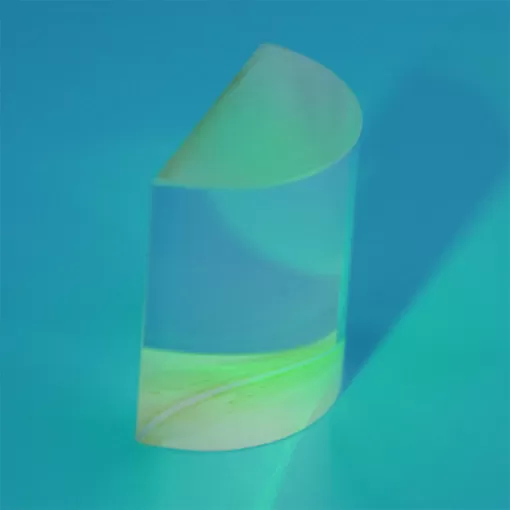

Plano Convex Cylindrical Lens

Name: Plano Convex Cylindrical Lens
Brand: ECOPTIK(CHINA)LTD

A plano-convex cylindrical lens is used to condense light in one axis. A positive plano cylindrical lens is able to create a line image from a point of light, to change the aspect ratio of an image or to focus collimated input light to a line. Plano- convex cylindrical lenses are typically used for illumination of slit and line detector arrays, laser projection, laser line focussing and anamorphic beam shaping. If you have any demand, please contact Ecoptik China.

Uses Plano Convex Cylindrical Lens 

 

Descriptions Specifications Drawing

Descriptions

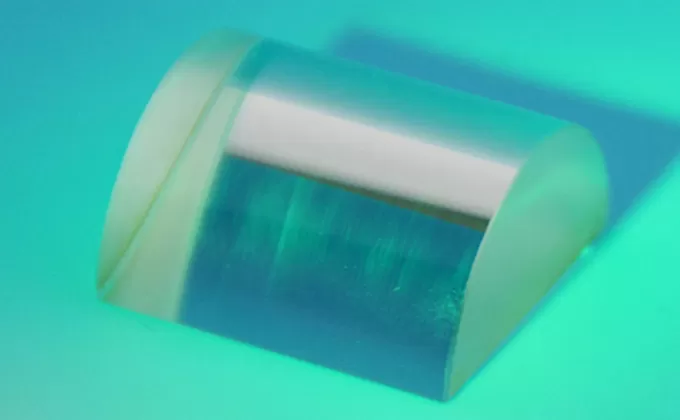

Descriptions of Plano Convex Cylindrical Lens

The Plano spherical lens acts symmetrically on the incident light in both directions, while the convex cylindrical lens acts in only one direction on the incident light. A typical application is to shape a deformed beam with a pair of plano-convex cylindrical lenses. A pair of positive plano-convex cylindrical lenses can be used to collimate and round the output of the laser diode. Another possible application is to focus the diverging beam onto the detector array with a single plano-convex cylindrical lens. In order to minimize the spherical aberration, when the collimated beams are concentrated into one line, the collimated light should be incident on the curved surface of the lens, and when the quasi-linear source is used, the line source should be incident on the plane of the lens.

Specifications

Specifications of Plano Convex Cylindrical Lens

Commercial	High precision

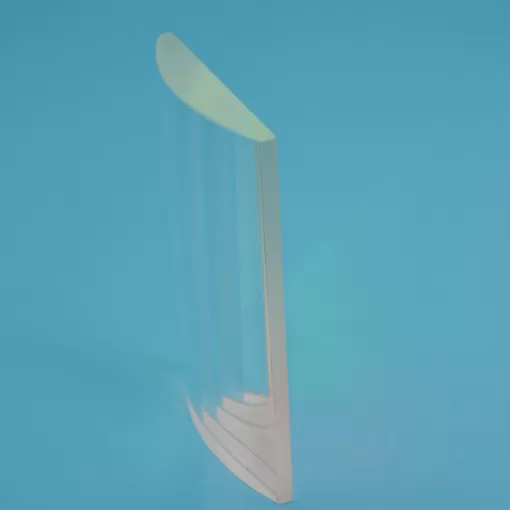

Material	Optical glasses, fused silica, silica, etc.
Diameter	0.5mm ~ 150mm
Diameter tolerance	±0.1mm	±0.02
Focal length	-50mm ~ 2000mm
Focal length tolerance	±2% (<10mm)
	±0.5% <10mm – 1000mm)
	±1% (>1000%)

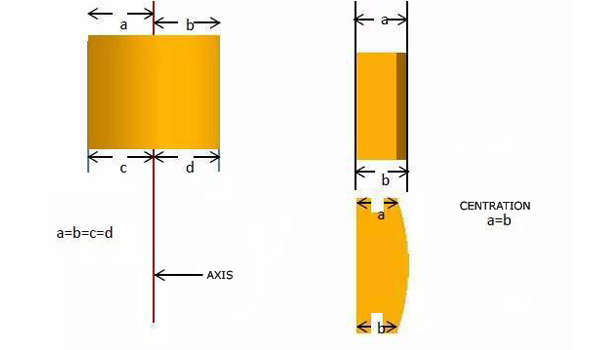

Centraticom	<3 arc min	<10 arc sec
Clear aperture	>85% ~92% of diameter
Surface quality ( Scratch / Dig)	MIL 60/40	MIL 10/5
Surface accuracy	λ/4@632.8nm	λ/10632.8nm
Bevel	0.05mm~0.2mm x 45°
Coating	Up on customer’s requirement.

Uses

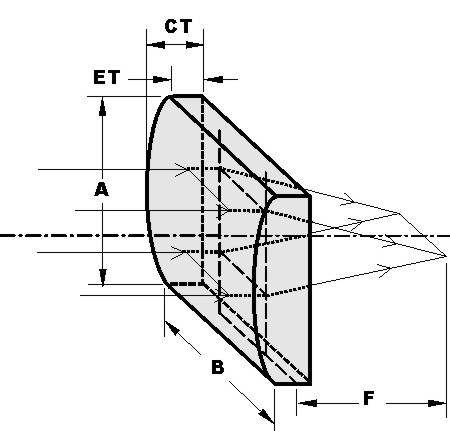

Drawing of Plano Convex Cylindrical Lens

Contact ECOPTIK China Here

We are accustomed to working with both optics specialists and non-specialists, so regardless of your optics knowledge, we can help. Get in contact with ECOPTIK team to review your specific application needs and options.

Products

Optical Cylindrical Lens Products

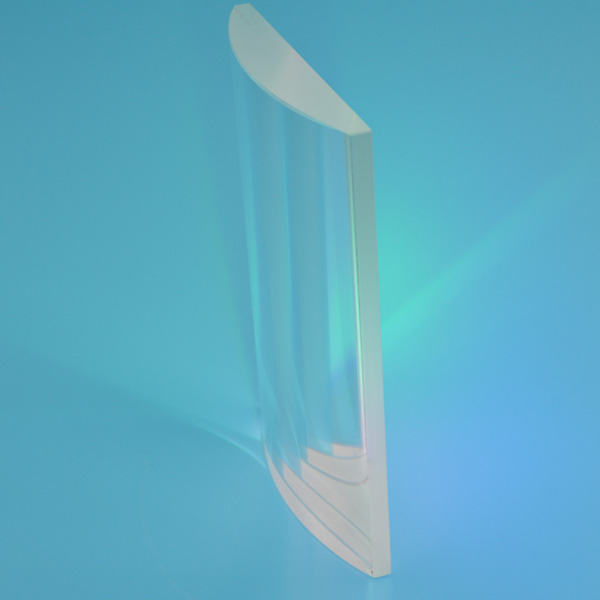

Plano Concave Cylindrical Lens
