Name: Visible Dome
Brand: ECOPTIK(CHINA)LTD

Visible Dome

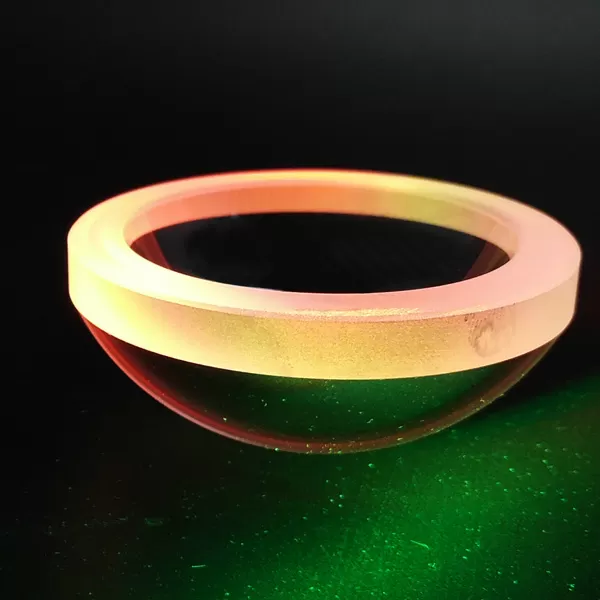

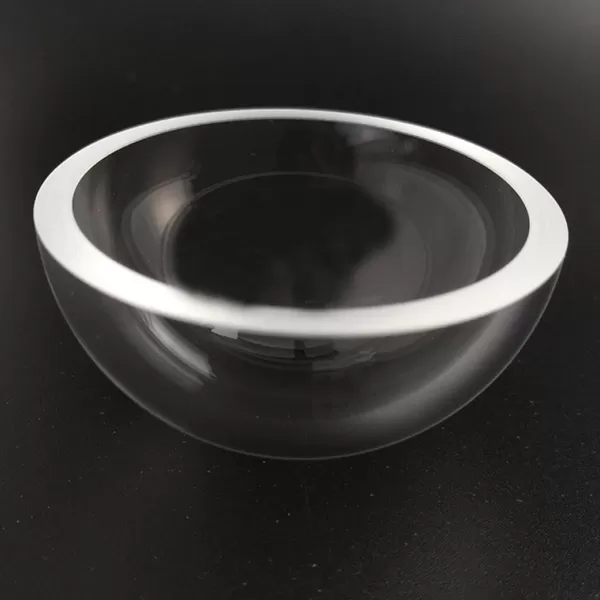

Ecoptik China transparent optical glass dome lens is composed of two parallel optical surfaces, (A convex surface & A Concave surface). Normally we can control the parallel tolerance <±2μm. A perfect parallel surface, in the imaging, the image does not distort, and in the measurement of light, the light does not distort. Ecoptik China Optical Dome, the optical properties are unique, which are produced by the optical technology of optical grinding and polishing.

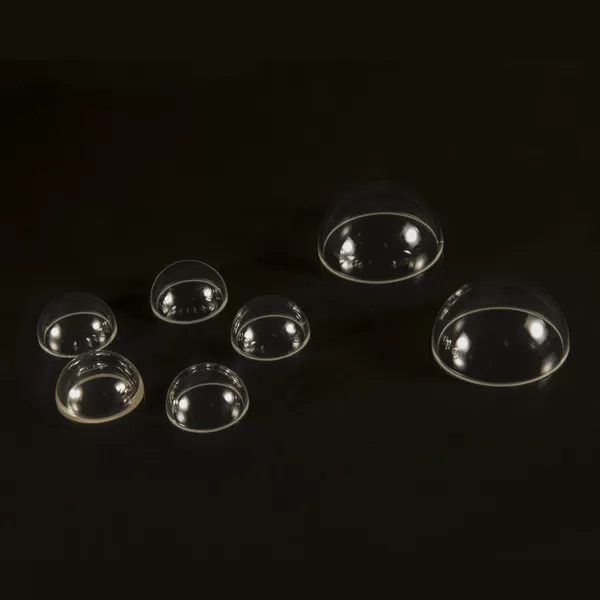

Ecoptik China large clear optical glass dome lens mainly are hemisphere, hyper-hemisphere, and customized designing. Whether it is a visible dome, UV dome, or IR dome, Ecoptik China Dome has been confirmed in the international market. Ecoptik China dome is found in areas such as defence technology, weather monitoring, and optical imaging.

Uses Visible Dome 

Specification Of Optical Glass Dome

1, Substrate: Visible material-------Optical glass (Schott N-BK7, N-BK10, WG295,N-K5,etc.)

2, Dimension: 10mm-350mm

3, Thickness: 1mm-10mm

4, Surface Quality: 60/40, 40/20, 20/10

5, Surface fringe: 10(5)-3(0.5)

6, Coating: Antireflection (AR) Coating

7, Strenthened via heat treatment (tempering)

TYPE LIST
Type No.	Diameter (mm)	Height (mm)	Thickness (mm)
BRD-D-10	10	5	1
BRD-D-15*	15	8	1.5
BRD-D-24A	24	12	2
BRD-D-24B*	24	12.75	2.4
BRD-D-24C	24	13	2
BRD-D-25A	25	12.5	2
BRD-D-25B	25	12.5	4
BRD-D-25C	25	14.5	2
BRD-D-28A	28	14	1.5
BRD-D-28B*	28	15	1
BRD-D-28C	28	16	1.5
BRD-D-30A*	30	15	1
BRD-D-30B	30	15	2
BRD-D-30C*	30	16	2
BRD-D-30D*	30	16	4
BRD-D-30E	30	16.5	2
BRD-D-30F	30	17	2
BRD-D-32A	32	16	2
BRD-D-32B	32	16	4
BRD-D-32C	32	17	2
BRD-D-32D*	32	17	4
BRD-D-36	36	18	2
BRD-D-38*	38	19	3
BRD-D-40A	40	20	2
BRD-D-40B	40	21	2
BRD-D-40C*	40	21.5	2
BRD-D-50A*	50	22	4
BRD-D-50B	50	25	2
BRD-D-50C	50	25	4
BRD-D-50D*	50	26	2
BRD-D-50E	50	27	2
BRD-D-50F*	50	28	1
BRD-D-50G	50	28	2
BRD-D-60	60	30	5
BRD-D-61*	61	30.6	15.6
BRD-D-70A*	70	35	4
BRD-D-70B	70	35	5
BRD-D-70C*	70	35	8
BRD-D-74*	74	27.2	6
BRD-D-75	75	37.5	3
BRD-D-76A*	76	38	5.5
BRD-D-76B	76	38	6
BRD-D-80	80	40	4
BRD-D-90*	90	45	12
BRD-D-100A	100	50	2
BRD-D-100B*	100	50	4
BRD-D-100C	100	50	5
BRD-D-110*	110	55	15
BRD-D-127	127	50.8	4
BRD-D-136	136	60	4
BRD-D-140A	140	70	4
BRD-D-140B	140	70	12
BRD-D-149	149.67	70	15
BRD-D-170	170	56	6.5
BRD-D-180	180	60	7.5
BRD-D-184	184	61	7

Plano Concave Lenses: A Comprehensive Overview of Technology and Applications

Plano concave lenses are common optical elements widely used in laser technology, imaging, medical equipment, and telecommunications. As critical components in optical systems, the manufacturing quali...

2025.08

Wedge Prism: A Mysterious Tool in Optics

The wedge prism is a specialized optical component that plays an important role in physics, optical engineering, and related fields. This article provides a detailed introduction to the basic concept,...

2025.08

The Working Principle and Advantages of the Triplet Achromatic Lens

In the development history of optical instruments, the emergence of the triple cemented achromatic lens is undoubtedly an important milestone. This lens combines three different refractive index cemen...

2025.08

Visible Dome

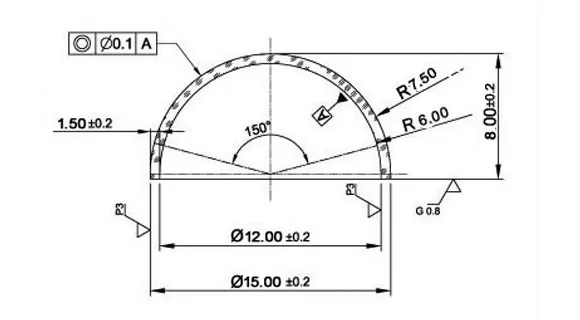

Drawing Of Transparent Optical Glass Dome
