Micro Prism

Name: Micro Prism
Brand: ECOPTIK(CHINA)LTD

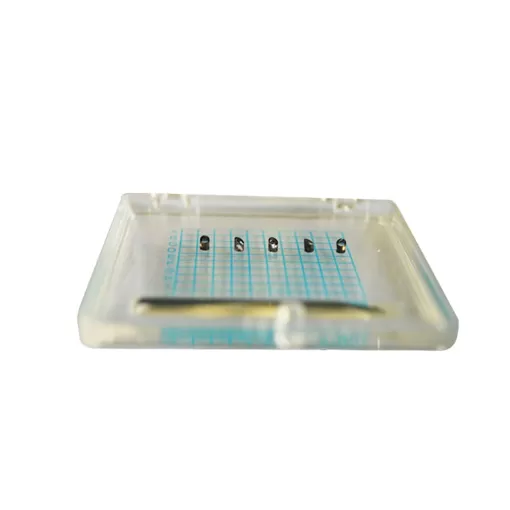

Ecoptik China's micro prism is primarily for the endoscopic, LD to fiber coupling applications.

Our micro prism is a popular product with a number of medical and industrial instrument manufacturers.

Uses Micro Prism 

Descriptions Specifications

Descriptions

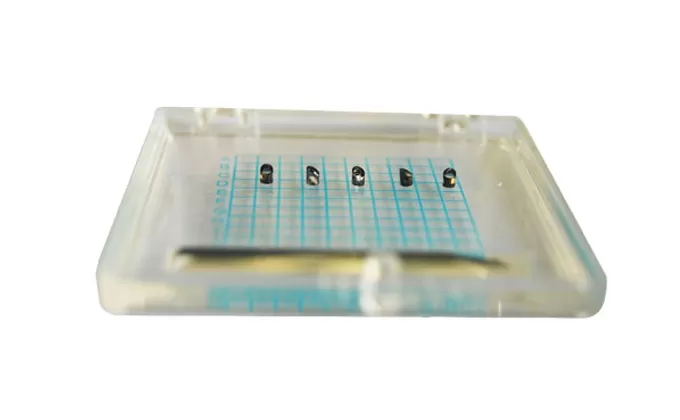

Descriptions of Micro Prism

Micro prisms provide an effective way to change the path of a beam within a component or fiber device. When light passes through a face of a prism, it is refracted. The main use of microprisms in optical fibers is to direct light beams from one optical channel to another with high accuracy. It has all the optical properties of prisms. It's just a very small size.

Due to the small size of the microprism, its processing method is slightly different from that of ordinary prism. It is also made by cutting, grinding and polishing optical glass.

Specifications

Specifications of Micro Prism

Structure of micro prisms	Micro right-angle prism, Micro wedge, Micro dove prism, Micro penta prism
Substrate	BK7 glass, Fused silica, etc.
Dimension	0.2mm~5mm
Angle tolerance	Up to ±10 arc sec.
Surface quality	20/10 , 10/5
Surface Flatness	λ/10
Clear aperture	>90% of Dimension
Coating	Up on clients’ request
