Standard Micro Lens Array

Standard Micro Lens Array

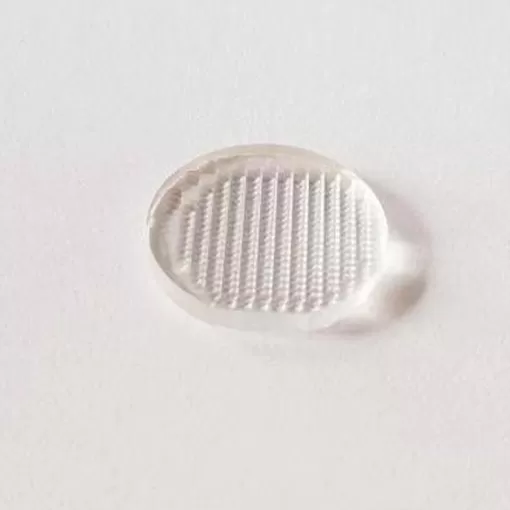

Micro lens array is composed of lenses with optical aperture of micron level and relief depth of nanometer level. It has the basic functions of focusing and imaging. With small unit size and high integration, it can complete the functions that traditional optical components cannot complete and can constitute many new optical systems. It is mainly used for Shack-Hartmann wavefront sensing, infrared focal plane detection or CCD array light gathering, laser array scanning, laser display, fiber coupling and other systems.

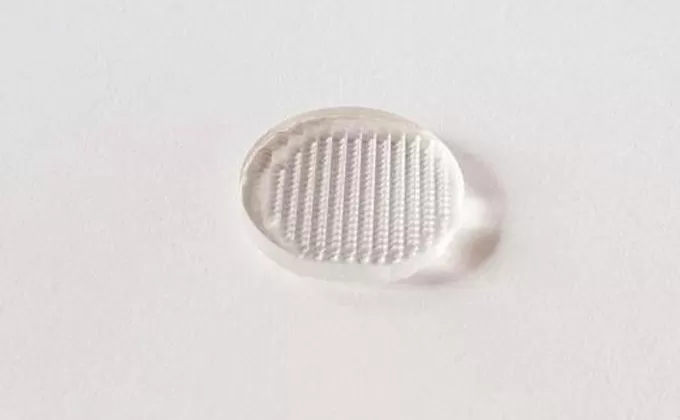

Description of Standard Micro Lens Array

The micro lens array is an array of a plurality of micro-sized lenslets of the same shape arranged in a regular pattern. The shape of the lenslets may be circular, square, hexagonal, square, or other shapes, most of which are in a square grid. They can also be arranged in square, hexagon, or other shapes. Micro lens are characterized by miniaturization, integration, and design freedom. It enables laser homogenization, beam splitting and beam focusing, Hartmann wavefront sensor (HSWFS), collimation, wavefront sensing and more. Generally used in high sensitivity imaging, fiber-coupled communication, laser beauty, laser processing and detection.

Specifications of Standard Micro Lens Array

1. Substrate: Fused silica, Quartz, ZnSe, Silicon, BK7 glass, etc.

2. Structure: Spherical lens, aspherical lens, cylindrical lens, etc.

3. Arrangement square array square lens, square array round lens, hexagonal arrangement, random arrangement, etc.

4. Micro lens cycle (subunit diameter), focal length, etch depth (height), radius of curvature

5. Surface shape: For diffractive elements, there are generally two types of continuous surface type and discontinuous surface shape (step type). The continuous surface type can eliminate chromatic aberration and is suitable for applications such as wide-band system imaging and spiral phase plate.


Product List


Model

Subunit shape

Pitch/μm

F/mm

Size/ mm

Thickness/mm

Coating

ML-S10-F0.02

square

10

0.02

10×10

1.0mm

uncoating

ML-S15-F0.05

square

15

0.05

10×10

1.0mm

uncoating

ML-S15.4-F0.086

square

15.4

0.086

8.5×8.4

1.0mm

uncoating

ML-S15.4-F0.086

square

15.4

0.086

8.5×8.4

1.0mm

uncoating

ML-S20-F0.05

square

20

0.05

10×10

1.0mm

uncoating

ML-S25-F0.06

square

25

0.06

10×10

1.0mm

uncoating

ML-S25-F0.04

square

25

0.04

42×17

1.0mm

uncoating

ML-S26.7-F0.2

square

26.7

0.2

23.6×16.98

1.0mm

uncoating

ML-S32-F0.08

square

32

0.08

10×10

1.0mm

uncoating

ML-S32-F0.08

square

32

0.08

14×11

2.0mm

uncoating

ML-S32-F0.08

square

32

0.08

23×16

2.0mm

uncoating

ML-S32-F0.08

square

32

0.08

32×25

2.0mm

uncoating

ML-S32-F0.16

square

32

0.16

10×10

1.0mm

uncoating

ML-S32-F0.08

square

32

0.08

8×8

1.0mm

uncoating

ML-S40-F0.15

square

40

0.15

12×12

1.0mm

uncoating

ML-S40-F0.24

square

40

0.24

12×12

1.0mm

uncoating

ML-S40-F0.219

square

40

0.219

13×13

1.0mm

uncoating

ML-S40-F0.4

square

40

0.4

12×12

1.0mm

uncoating

ML-S40-F0.6

square

40

0.6

30×30

1.0mm

uncoating

ML-S50-F0.3

square

50

0.3

10×10

1.0mm

uncoating

ML-S64-F0.45

square

64

0.45

12×12

1.0mm

uncoating

ML-S64-F1.92

square

64

1.92

12×12

1.0mm

uncoating

ML-S66-F1

square

66

1

20×15

1.0mm

uncoating

ML-S70-F0.19

square

70

0.19

15×15

0.6mm

uncoating

ML-S75-F6.3

square

75

6.3

11×8

1.0mm

uncoating

ML-S98-F3

square

98

3

35×35

2.0mm

uncoating

ML-S100-F0.5

square

100

0.5

10×10

1.0mm

uncoating

ML-S100-F0.5

square

100

0.5

10×10

1.0mm

uncoating

ML-S100-F0.5

square

100

0.5

Φ43.0

1.0mm

uncoating

ML-S100-F0.5

square

100

0.5

25×15

1.0mm

uncoating

ML-S100-F0.62

square

100

0.62

28×20

1.0mm

uncoating

ML-S100-F0.3

square

100

0.3

10×10

1.0mm

uncoating

ML-S100-F11.71

square

100

11.71

10×10

1.0mm

uncoating

ML-S100-F1

square

100

1

10×10

1.0mm

uncoating

ML-S100-F1

square

100

1

10×10

1.0mm

uncoating

ML-S100-F3

square

100

3

10×10

1.0mm

uncoating

ML-S100-F3

square

100

3

10×10

1.0mm

uncoating

ML-S100-F4

square

100

4

10×10

1.0mm

uncoating

ML-S100-F5

square

100

5

10×10

1.0mm

uncoating

ML-S100-F5

square

100

5

22.5×22.5

2.0mm

uncoating

ML-S100-F5

square

100

5

22.5×22.5

2.0mm

uncoating

ML-S100-F3

square

100

3

40×40

2.0mm

uncoating

ML-S100-F1

square

100

1

40×40

2.0mm

uncoating

ML-S102-F2.6

square

102

2.6

20×20

2.0mm

uncoating

ML-S108-F3

square

108

3

10×10

1.0mm

uncoating

ML-S108-F3

square

108

3

12×12

1.0mm

uncoating

ML-S108-F3

square

108

3

45×30

1.0mm

uncoating

ML-S108-F3.5

square

108

3.5

36×24

2.0mm

uncoating

ML-S108-F5

square

108

5

10×10

1.0mm

uncoating

ML-S110-F6.05

square

110

6.05

Φ25.40

1.0mm

uncoating

ML-S114.7-F5.68

square

114.7

5.68

20×20

2.0mm

uncoating

ML-S120-F2.4

square

120

2.4

12×12

1.0mm

uncoating

ML-S120-F1.2

square

120

1.2

12×12

1.0mm

uncoating

ML-S120-F0.84

square

120

0.84

12×12

1.0mm

uncoating

ML-S125-F1.25

square

125

1.25

10×10

1.0mm

uncoating

ML-S125-F4

square

125

4

Φ15.00

2.0mm

uncoating

ML-S127-F1.27

square

127

1.27

10×10

1.0mm

uncoating

ML-S132-F5.6

square

132

5.6

20×15

2.0mm

uncoating

ML-S150-F3

square

150

3

10×10

1.0mm

uncoating

ML-S150-F1.6

square

150

1.6

10×10

1.0mm

uncoating

ML-S150-F1.5

square

150

1.5

Φ12.7

1.0mm

uncoating

ML-S150-F1.5

square

150

1.5

Φ12.7

1.0mm

uncoating

ML-S150-F3.5

square

150

3.5

10×10

1.0mm

uncoating

ML-S150-F3.5

square

150

3.5

10×10

1.0mm

uncoating

ML-S150-F10

square

150

10

22.5×22.5

2.0mm

uncoating

ML-S150-F10

square

150

10

22.5×22.5

2.0mm

uncoating

ML-S188-F8

square

188

8

Φ25

2.0mm

uncoating

ML-S198-F11

square

198

11

Φ25.40

1.0mm

uncoating

ML-S198-F15

square

198

15

Φ25.40

1.0mm

uncoating

ML-S200-F8

square

200

8

8×8

1.0mm

uncoating

ML-S200-F8

square

200

8

10×10

1.0mm

uncoating

ML-S200-F7.9

square

200

7.9

Φ20

1.0mm

uncoating

ML-S200-F16

square

200

16

Φ14.00

2.0mm

uncoating

ML-S200-F10

square

200

10

12×10

2.0mm

uncoating

ML-S200-F4

square

200

4

10×10

1.0mm

uncoating

ML-S208-F5.3

square

208

5.3

18×18

2.0mm

uncoating

ML-S214.5-F7

square

214.5

7

13×13

1.0mm

uncoating

ML-S214.5-F10

square

214.5

10

13×13

1.0mm

uncoating

ML-S220-F4

square

220

4

Φ16.00

2.0mm

uncoating

ML-S236.8-F7

square

236.8

7

10×10

1.0mm

uncoating

ML-S236.8-F7.1

square

236.8

7.1

20×20

2.0mm

uncoating

ML-S240-F5.7

square

240

5.7

10×10

2.0mm

uncoating

ML-S240-F5.7

square

240

5.7

10×10

2.0mm

uncoating

ML-S240-F5.7

square

240

5.7

10×10

2.0mm

uncoating

ML-S250-F5

square

250

5

10×10

1.0mm

uncoating

ML-S250-F5

square

250

5

Φ100.00

1.0mm

uncoating

ML-S250-F5

square

250

5

10×10

2.0mm

uncoating

ML-S250-F10

square

250

10

10×10

1.0mm

uncoating

ML-S250-F10

square

250

10

Φ15.00

2.0mm

uncoating

ML-S250-F6

square

250

6

10×10

1.0mm

uncoating

ML-S250-F6

square

250

6

12×12

1.0mm

uncoating

ML-S250-F2.5

square

250

2.5

10×10

1.0mm

uncoating

ML-S250-F3

square

250

3

35×35

2.0mm

uncoating

ML-S264-F8.5

square

264

8.5

Φ25.40

1.0mm

uncoating

ML-S264-F9

square

264

9

Φ25.40

1.0mm

uncoating

ML-S264-F11.5

square

264

11.5

Φ25.40

1.0mm

uncoating

ML-S264-F18

square

264

18

Φ25.40

1.0mm

uncoating

ML-S300-F5

square

300

5

10×10

1.0mm

uncoating

ML-S300-F1.62

square

300

1.62

23×23

1.0mm

uncoating

ML-S300-F14.6

square

300

14.6

10×10

1.2mm

uncoating

ML-S300-F1.6

square

300

1.6

16×16

1.0mm

uncoating

ML-S300-F5

square

300

5

5.5×5.5

1.0mm

uncoating

ML-S300-F5

square

300

5

7.5×7.5

1.0mm

uncoating

ML-S300-F5

square

300

5

15×15

1.0mm

uncoating

ML-S300-F4.29

square

300

4.29

26×26

1.0mm

uncoating

ML-S300-F5

square

300

5

10×10

2.0mm

uncoating

ML-S300-F10

square

300

10

10×10

1.0mm

uncoating

ML-S300-F10

square

300

10

10×10

2.0mm

uncoating

ML-S300-F20

square

300

20

22.5×22.5

2.0mm

uncoating

ML-S300-F20

square

300

20

22.5×22.5

2.0mm

uncoating

ML-S300-F30

square

300

30

10×10

2.0mm

uncoating

ML-S302.5-F11

square

302.5

11

Φ25.40

1.0mm

uncoating

ML-S302.5-F14.5

square

302.5

14.5

Φ25.40

1.0mm

uncoating

ML-S302.5-F15

square

302.5

15

Φ25.40

1.0mm

uncoating

ML-S302.5-F22

square

302.5

22

Φ25.40

1.0mm

uncoating

ML-S310-F10

square

310

10

10×10

1.0mm

uncoating

ML-S310-F10

square

310

10

10×10

1.0mm

uncoating

ML-S310-F10

square

310

10

10×10

1.0mm

uncoating

ML-S310-F10

square

310

10

25×25

1.0mm

uncoating

ML-S310-F10

square

310

10

10×10

2.0mm

uncoating

ML-S310-F7

square

310

7

10×10

1.0mm

uncoating

ML-S310-F7

square

310

7

10×10

2.0mm

uncoating

ML-S310-F12

square

310

12

10×10

2.0mm

uncoating

ML-S319-F13

square

319

13

Φ25.40

1.0mm

uncoating

ML-S319-F16

square

319

16

Φ25.40

1.0mm

uncoating

ML-S319-F25.5

square

319

25.5

Φ25.40

1.0mm

uncoating

ML-S335.5-F13.5

square

335.5

13.5

Φ25.40

1.0mm

uncoating

ML-S335.5-F18

square

335.5

18

Φ25.40

1.0mm

uncoating

ML-S350-F10

square

350

10

13×13

1.0mm

uncoating

ML-S352-F10

square

352

10

Φ25.40

1.0mm

uncoating

ML-S352-F15

square

352

15

Φ25.40

1.0mm

uncoating

ML-S352-F20

square

352

20

Φ25.40

1.0mm

uncoating

ML-S352-F30

square

352

30

Φ25.40

1.0mm

uncoating

ML-S360-F14

square

360

14

10×10

1.2mm

uncoating

ML-S360-F7.16

square

360

7.16

Φ15

1.0mm

uncoating

ML-S380-F6

square

380

6

10×10

1.0mm

uncoating

ML-S400-F10

square

400

10

14×14

2.0mm

uncoating

ML-S400-F30

square

400

30

Φ30

1.0mm

uncoating

ML-S467-F25

square

467

25

15×15

2.0mm

uncoating

ML-S467-F34

square

467

34

15×15

2.0mm

uncoating

ML-S498-F7.5

square

498

7.5

10×10

1.0mm

uncoating

ML-S498-F30

square

498

30

10×10

1.0mm

uncoating

ML-S500-F20

square

500

20

10×10

1.0mm

uncoating

ML-S500-F20

square

500

20

7×7

1.0mm

uncoating

ML-S500-F12

square

500

12

10×10

1.0mm

uncoating

ML-S500-F15

square

500

15

15×15

2.0mm

uncoating

ML-S500-F50

square

500

50

35×35

2.0mm

uncoating

ML-S500-F30

square

500

30

25.4×25.4

2.0mm

uncoating

ML-S500-F30

square

500

30

Φ50

6.0mm

uncoating

ML-S500-F40

square

500

40

40×8

1.0mm

uncoating

ML-S500-F35

square

500

35

12×12

2.0mm

uncoating

ML-S500-F50

square

500

50

10×10

1.0mm

uncoating

ML-S500-F50

square

500

50

15×15

2.0mm

uncoating

ML-S500-F15

square

500

15

10×10

1.0mm

uncoating

ML-S500-F15

square

500

15

10×10

1.0mm

uncoating

ML-S550-F35

square

550

35

12×12

2.0mm

uncoating

ML-S550-F35

square

550

35

12×12

2.0mm

uncoating

ML-S586-F14

square

586

14

10×10

1.0mm

uncoating

ML-S597-F49.9

square

597

49.9

10×10

2.0mm

uncoating

ML-S597-F18

square

597

18

10×10

2.0mm

uncoating

ML-S597-F49.9

square

597

49.9

Φ15.00

2.0mm

uncoating

ML-S600-F35

square

600

35

10×10

1.0mm

uncoating

ML-S600-F35

square

600

35

10×10

1.0mm

uncoating

ML-S600-F27

square

600

27

10×10

1.0mm

uncoating

ML-S649-F35.75

square

649

35.75

Φ25.40

2.0mm

uncoating

ML-S737-F40.53

square

737

40.53

Φ25.40

2.0mm

uncoating

ML-S737-F81

square

737

81

Φ25.40

2.0mm

uncoating

ML-S800-F25.5

square

800

25.5

22×28

1.0mm

uncoating

ML-S891-F49

square

891

49

Φ25.40

2.0mm

uncoating

ML-S891-F98

square

891

98

Φ25.40

2.0mm

uncoating

ML-S1000-F30

square

1000

30

12×12

2.0mm

uncoating

ML-S1000-F35

square

1000

35

12×12

2.0mm

uncoating

ML-S1000-F35

square

1000

35

12×12

2.0mm

uncoating

ML-S1000-F35

square

1000

35

25.4×25.4

1.0mm

uncoating

ML-S1000-F60

square

1000

60

12×12

2.0mm

uncoating

ML-S1000-F30

square

1000

30

Φ10

2.0mm

uncoating

ML-S1000-F25

square

1000

25

12×12

2.0mm

uncoating

ML-S1015-F61

square

1015

61

10×10

2.0mm

uncoating

ML-S1015-F153

square

1015

153

10×10

2.0mm

uncoating

ML-S1100-F153

square

1100

153

10×10

2.0mm

uncoating

ML-S1100-F60.5

square

1100

60.5

Φ25.40

2.0mm

uncoating

ML-S1100-F121

square

1100

121

Φ25.40

2.0mm

uncoating

ML-S1100-F55

square

1100

55

12×12

2.0mm

uncoating

ML-S1100-F60

square

1100

60

12×12

2.0mm

uncoating

ML-S1500-F153

square

1500

153

10×10

2.0mm

uncoating

ML-R158×500-F10.2

rectangle

158×500

10.2

30×20

1.0mm

uncoating

ML-R158×500-F10.2

rectangle

158×500

10.2

30×20

1.0mm

uncoating

ML-R158×500-F10.2

rectangle

158×500

10.2

22×14

1.0mm

uncoating

ML-R280×260-F5.8

rectangle

280×260

5.8

9.3×5.5

1.0mm

uncoating

ML-R300×200-F3.4

rectangle

300×200

3.4

10.1×7.0

1.0mm

uncoating

ML-R320×200-F10.2

rectangle

320×200

10.2

19×12

1.0mm

uncoating

ML-R320×200-F10.2

rectangle

320×200

10.2

10×10

1.0mm

uncoating

ML-R360×220-F4.8

rectangle

360×220

4.8

5×7

1.0mm

uncoating

ML-R391×237-F4.3

rectangle

391×237

4.3

14×11

1.0mm

uncoating

ML-R400×300-F10

rectangle

400×300

10

14×14

2.0mm

uncoating

ML-R475×225-F6.2

rectangle

475×225

6.2

19.1×13.4

1.0mm

uncoating

ML-R500×300-F6.6

rectangle

500×300

6.6

12×12

1.0mm

uncoating

ML-R600×320-F34.5

rectangle

600×320

34.5

13×19

1.0mm

uncoating

ML-R700×350-F10.4

rectangle

700×350

10.4

13.3×13.55

1.0mm

uncoating

ML-C10-F0.02

circle

10

0.02

10×10

1

uncoating

ML-C20-F0.05

circle

20

0.05

10×10

1

uncoating

ML-C25R-F0.067

circle

25

0.067

15×14

1

uncoating

ML-C26-F0.109

circle

26

0.109

23.47×17.1

1

uncoating

ML-C27-F0.205-A

circle

26.7

0.205

23.6×16.98

1

uncoating

ML-C30-f0.152

circle

30

0.152

10×10

1

uncoating

ML-C40-F0.15

circle

40

0.15

10×10

1

uncoating

ML-C46-F1.6

circle

46

1.6

20×20

1

uncoating

ML-C50-F0.28

circle

50

0.2

10×10

1

uncoating

ML-C50-F0.28

circle

50

0.28

10×10

1

uncoating

ML-C51.5-F0.28

circle

51.5

0.28

15×14.4

1

uncoating

ML-C75-F0.75

circle

75

0.75

10×10

1

uncoating

ML-C100-F0.27

circle

100

0.27

5.6×5.8

0.3

uncoating

ML-C100-F0.3

circle

100

0.3

5.8×5.8

0.3

uncoating

ML-C100-F0.4

circle

100

0.4

10×10

1

uncoating

ML-C100-F0.5

circle

100

0.5

10×10

1

uncoating

ML-C100-F1.0

circle

100

1

10×10

1

uncoating

ML-C100-F3.0

circle

100

3

10×10

1

uncoating

ML-C108-F3.5

circle

108

3.5

36×24/10×10

1

uncoating

ML-C108-F3.0

circle

108

3

10×10

1

uncoating

ML-S109-F3.0

circle

109

3

10×10

1

uncoating

ML-C110-F1.9-Ar

circle

110

1.9

7.8×6.5

1

uncoating

ML-C110-F2.582

circle

110

2.582

10×10

1

uncoating

ML-C110-F6.127

circle

110

6.127

10×10

1

uncoating

ML-C110-13.54

circle

110

13.52

10×10

1

uncoating

ML-C122-F2.96

circle

122

2.96

19.4×14.8

1

uncoating

ML-C123-F0.55

circle

123

0.55

10×10

1

uncoating

ML-C127-F0.394

circle

127

0.394

10×10

1

uncoating

ML-C130-F3.448

circle

130

3.448

10×10

1

uncoating

ML-C150-F4.1-Cr

circle

150

4.1

10×10

1

uncoating

ML-C150-F5.2-Ar

circle

150

5.2

10×10

1.2

uncoating

ML-C150-F5.45

circle

150

5.45

10×10

1

uncoating

ML-C150-F11.4

circle

150

11.4

10×10

1

uncoating

ML-C192-F16-Ar

circle

192

16

16×16

1.6

uncoating

ML-C200-F5.0

circle

200

5

10×10

1

uncoating

ML-C200-F8.0

circle

200

8

8×8

1

uncoating

M-C250-F4.0

circle

250

4

10×10

1

uncoating

ML-C250-F7.0

circle

250

7

10×10

1

uncoating

ML-C300-F5.0

circle

300

5

10×10

1

uncoating

ML-C300-F10

circle

300

10

10×10

1

uncoating

ML-C310-F10

circle

310

10

10×10

1

uncoating

ML-C300-F14.6-AR

circle

300

14.6

10×10

1.2

uncoating

ML-C400-F10

circle

400

10

16×16

1.6

uncoating

ML-C500-F5

circle

500

5

10×10

1

uncoating

ML-C500-F10

circle

500

10

10×10

1

uncoating

ML-C500-F15.0-AsCr

circle

500

15

10×10

1

uncoating

ML-C500-F15.0-Cr

circle

500

15

10×10

1

uncoating

ML-C550-F15.0

circle

550

15

12×12

2

uncoating

ML-C600-F40-Ar

circle

600

40

16×16

1.6

uncoating

ML-C1000-F30.0-Cr

circle

1000

30

28×28

2

uncoating

ML-C1000-F50-Cr

circle

1000

50

28×28

2

uncoating

ML-C1000-F100

circle

1000

100

25×25

1

uncoating

ML-C10H-F0.02

circle

10

0.02

10×10

1.0mm

uncoating

ML-C20H-F0.092

circle

20

0.092

10×10

1.0mm

uncoating

ML-C20H-F0.08

circle

20

0.08

Φ12.70

1.0mm

uncoating

ML-C21.1H-F0.131

circle

21.1

0.131

23.6×16.98

0.6mm

uncoating

ML-C21.1H-F0.51

circle

21.1

0.51

23.6×16.98

1.0mm

uncoating

ML-C21.1H-F0.182

circle

21.1

0.182

23.6×16.98

1.0mm

uncoating

ML-C21.5H-F0.136

circle

21.5

0.136

15.0×14.40

0.6mm

uncoating

ML-C23.9H-F0.137

circle

23.9

0.137

23.6×16.98

0.6mm

uncoating

ML-C23.9H-F0.137

circle

23.9

0.137

23.6×16.98

1.0mm

uncoating

ML-C25H-F0.067

circle

25

0.067

15×14

1.0mm

uncoating

ML-C26.7H-F0.205

circle

26.7

0.205

23.6×16.98

0.6mm

uncoating

ML-C26.7H-F0.205

circle

26.7

0.205

23.6×16.98

1.0mm

uncoating

ML-C27.1H-F0.18

circle

27.1

0.18

31.2×23.2

0.6mm

uncoating

ML-C27.1H-F0.205

circle

27.1

0.205

31.2×23.2

1.0mm

uncoating

ML-C28H-F0.109

circle

28

0.109

23.6×16.98

1.0mm

uncoating

ML-C28H-F0.109

circle

28

0.109

8.0×6.0

1.0mm

uncoating

ML-C27.5H-F0.05

circle

27.5

0.05

2.5×2.5

1.0mm

uncoating

ML-C28.8H-F0.115

circle

28.8

0.115

31.2×23.2

1.0mm

uncoating

ML-C30H-F0.092

circle

30

0.092

10×10

1.0mm

uncoating

ML-C30H-F0.152

circle

30

0.152

10×10

1.0mm

uncoating

ML-C42H-F0.168

circle

42

0.168

25×20

1.0mm

uncoating

ML-C48H-F0.132

circle

48

0.132

11×4.778

1.2mm

uncoating

ML-C51.5H-F1.5

circle

51.5

1.5

15.0×14.40

1.0mm

uncoating

ML-C50H-F0.2

circle

50

0.2

10×10

1.0mm

uncoating

ML-C77H-F0.308

circle

77

0.308

36.3×24.2

1.0mm

uncoating

ML-C90H-F0.405

circle

90

0.405

34×21

1.2mm

uncoating

ML-C99H-F0.792

circle

99

0.792

34×21

1.0mm

uncoating

ML-C99H-F0.792

circle

99

0.792

52×42

1.2mm

uncoating

ML-C99H-F0.792

circle

99

0.792

52×42

1.2mm

uncoating

ML-C100H-F0.4

circle

100

0.4

10×10

1.0mm

uncoating

ML-C125H-F0.55

circle

125

0.55

10×10

1.0mm

uncoating

ML-C127H-F0.55

circle

127

0.55

10×10

1.0mm

uncoating

ML-C150H-F5.45

circle

150

5.45

10×10

1.0mm

uncoating

ML-C160H-F0.75

circle

160

0.75

18×17

1.0mm

uncoating

ML-C200H-F5

circle

200

5

10×10

1.0mm

uncoating

ML-C250H-F0.923

circle

250

0.923

10×10

1.0mm

uncoating

ML-C250H-F1.827

circle

250

1.827

10×10

1.0mm

uncoating

ML-C270H-F1.4

circle

270

1.4

24.16×17.22

2.0mm

uncoating

ML-C300H-F5

circle

300

5

10×10

1.0mm

uncoating

ML-C300H-F10

circle

300

10

10×10

1.0mm

uncoating

ML-H16-F0.03

hexagon

16

0.03

Φ25.4

1mm

uncoating

ML-H18-F0.03

hexagon

18

0.03

10×10

1mm

uncoating

ML-H20-F0.1

hexagon

20

0.1

15×14.4

1mm

uncoating

ML-H30-F0.092

hexagon

30

0.092

10×10

1mm

uncoating

ML-H36.5-F0.12

hexagon

36.5

0.12

10×10

1mm

uncoating

ML-H50-F0.2

hexagon

50

0.2

10×10

1mm

uncoating

ML-H70-F0.3

hexagon

70

0.3

36×24

1mm

uncoating

ML-H100-F0.5

hexagon

100

0.5

10×10

1mm

uncoating

ML-H123-F5

hexagon

123

5

Φ12.7

1mm

uncoating

ML-H125-F0.55

hexagon

125

0.55

10×10

1mm

uncoating

ML-H125-F0.71

hexagon

125

0.71

10×10

1mm

uncoating

ML-H125-F3

hexagon

125

3

Φ12.7

2mm

uncoating

ML-H127-F0.55

hexagon

127

0.55

10×10

1mm

uncoating

ML-H127-F0.71

hexagon

127

0.71

10×10

1mm

uncoating

ML-H127-F1

hexagon

127

1

10×10

1mm

uncoating

ML-H200-F5.0

hexagon

200

5

10×10

1mm

uncoating

ML-H250-F7.0

hexagon

250

7

10×10

1mm

uncoating

ML-H300-F10.0

hexagon

300

10

10×10

1mm

uncoating

ML-H500-F10.0

hexagon

500

10

10×10

1mm

uncoating

ML-H500-F25.0

hexagon

500

25

Φ18.0

1.6mm

uncoating

ML-H500-F22.2

hexagon

500

22.2

10×10

1mm

uncoating

ML-H500-F32.5

hexagon

500

32.5

10×10

1mm

uncoating

ML-H600-F25.0

hexagon

600

25

10×10

1mm

uncoating

ML-H700-F50.0

hexagon

700

50

12.7×12.7

3mm

uncoating

ML-H800-F40.0

hexagon

800

40

Φ16.0

2mm

uncoating

ML-H1000-F35.0

hexagon

1000

35

Φ16.0

2mm

uncoating

ML-H1000-F40.0

hexagon

1000

40

Φ20.0

2mm

uncoating

ML-H1000-F40.0

hexagon

1000

40

Φ20.0

2mm

uncoating

ML-H1000-F42.0

hexagon

1000

42

Φ16.0

1mm

uncoating

ML-H1000-F50.0

hexagon

1000

50

Φ16.0

2mm

uncoating

ML-H1000-F70.0

hexagon

1000

70

Φ16.0

2mm

uncoating

ML-H1000-F100.0

hexagon

1000

100

Φ16.0

2mm

uncoating

ML-H1000-F150.0

hexagon

1000

150

Φ16.0

2mm

uncoating

ML-H1500-F83.24

hexagon

1500

83.24

Φ25.4

2mm

uncoating

ML-H1500-F150.0

hexagon

1500

150

20×20

2mm

uncoating


Contact Us
Interested in Optical Products?
Don’t hesitate to contact Ecoptik.
*
*
*
*
Optics Are Everywhere
Look For Areas Of Your Industry
Optical elements can be large astronomical survey mirrors or small optical communication elements.It could be in a spacecraft
exploring the universe, it could be in a probe going deep into the ocean, and of course, it's in our lives.
What Is New About ECOPTIK
Get Optical Resources You Want at ECOPTIK (BRD OPTICAL)
X
We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Visit our cookie policy to leamn more.
Reject Accept
